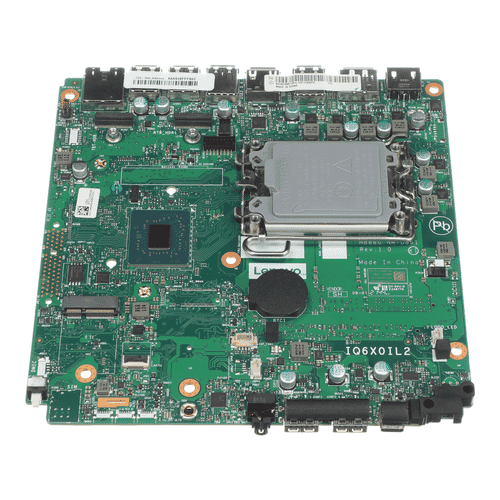

Lenovo 5b20u55160 Motherboard Intel Q670 35W Adl

Product Description

The LENOVO 5b20u55160 is an OEM replacement motherboard built around the Intel Q670 chipset and configured for the Alder Lake (ADL) platform at a 35-watt thermal design power. This board ships with a Windows Digitally Attached License (DPK), meaning the Windows license is bound to the board at the factory. It is designed for technicians performing depot-level or field repairs on Lenovo commercial laptop and mobile workstation systems. Installation requires component-level disassembly experience, proper anti-static handling, and familiarity with Lenovo service documentation for the specific host chassis.

This motherboard is suited for professional repair environments servicing Lenovo business-class laptops equipped with the Intel Q670 chipset and 12th-generation Alder Lake processor architecture. The 35W TDP rating places it in the performance-tier segment of Lenovo commercial mobile platforms. Technicians replacing failed or damaged system boards in covered models will find this board maintains the original factory software licensing configuration through the embedded DPK.

Key Features

• Intel Q670 chipset supports 12th-generation Alder Lake mobile processors
• 35W TDP configuration for performance-tier commercial laptop platforms
• Windows DPK license embedded at the factory for seamless OS activation on replacement
• OEM Lenovo part number ensures direct fitment within supported chassis
• Designed for depot and field repair by qualified service technicians

Compatibility

Designed as an OEM-style replacement motherboard for Lenovo commercial laptop systems utilizing the Intel Q670 chipset and Alder Lake platform. Consult Lenovo service documentation and the host unit FRU list to confirm fitment before installation.

Installation Notes

System board replacement must be performed by a qualified technician with component-level repair experience. Power down the system completely, disconnect the battery, and discharge residual voltage before handling the board. Follow all anti-static precautions throughout the procedure. Reference the applicable Lenovo Hardware Maintenance Manual for torque, connector sequencing, and reassembly procedures specific to the host chassis.

Technical Specifications

• Chipset: Intel Q670
• Platform: Alder Lake (ADL)
• Thermal Design Power: 35W
• License Type: Windows DPK (Digitally Attached License)
• Form Factor: Laptop OEM Motherboard

Standard Information

• Brand: LENOVO
• Manufacturer Part Number: 5b20u55160
