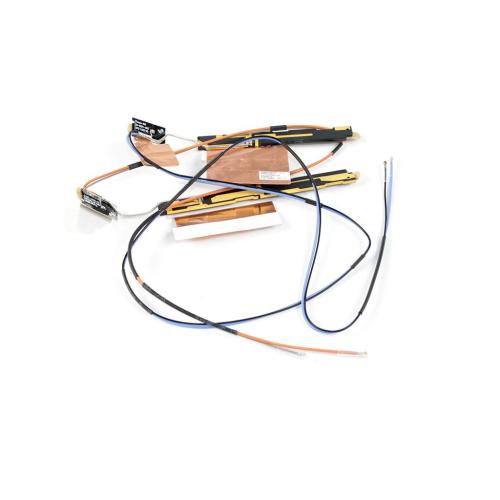

Lenovo 01er100 Wireless Antenna Kit Wlan TH-2

Product Description

The LENOVO 01er100 is a worldwide WLAN antenna kit designed as a replacement or service part for Lenovo systems. It provides the internal wireless antenna assembly needed to maintain reliable Wi-Fi connectivity within the host device. This kit is intended for installation by qualified technicians performing depot-level or field service repairs on compatible Lenovo hardware. The TH-2 and Speed designations in the part name indicate specific platform and configuration fitment within the Lenovo parts ecosystem.

This antenna kit is used in wireless network service scenarios where the original internal WLAN antenna has failed, become damaged, or requires replacement during a system refurbishment. It supports worldwide frequency band compatibility as indicated by the WW designation, making it suitable for use across multiple regional wireless standards. Installation is performed during disassembly of the host unit as part of a structured repair procedure.

Key Features

• Worldwide WLAN antenna configuration supports broad regional frequency compatibility
• OEM Lenovo service part ensures proper fitment and connector compatibility
• Kit format includes antenna assembly for a complete service replacement
• Platform-specific designation for TH-2 and Speed configurations

Compatibility

Designed as an OEM-style replacement antenna kit for compatible Lenovo systems designated under the TH-2 and Speed platform configurations. Refer to Lenovo service documentation to confirm fitment for the specific system being serviced.

Installation Notes

Installation should be performed by a qualified technician following Lenovo hardware maintenance manual procedures for the applicable system. Power down and disconnect the battery before accessing internal components. Antenna cables are fragile and should be routed and seated carefully to avoid damage to the connector or coaxial lead. Follow applicable ESD precautions throughout the repair process.

Technical Specifications

• Antenna Type: WLAN Internal Wireless Antenna Kit
• Regional Configuration: Worldwide (WW)
• Platform Designation: TH-2, Speed

Standard Information

• Brand: LENOVO
• Manufacturer Part Number: 01er100
