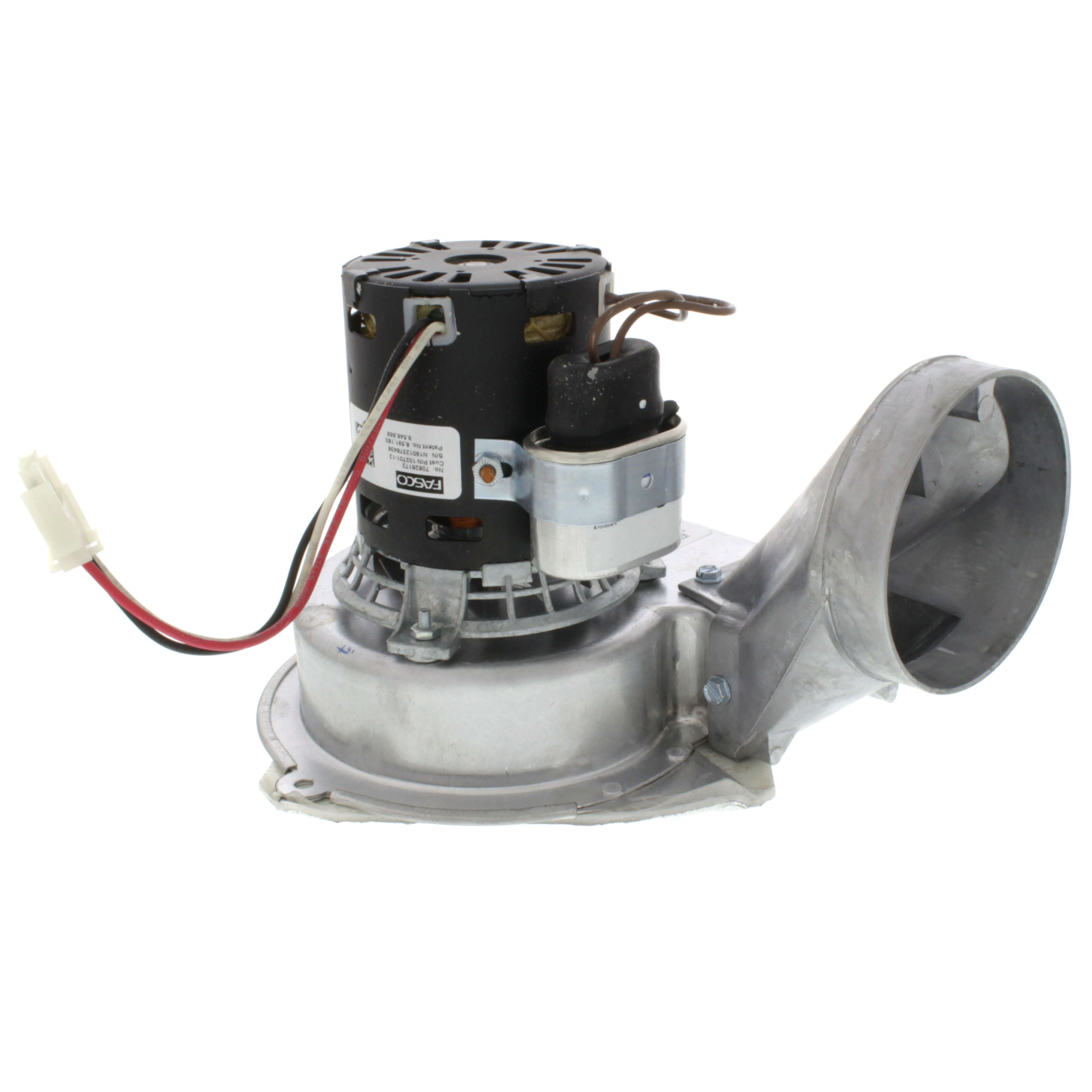

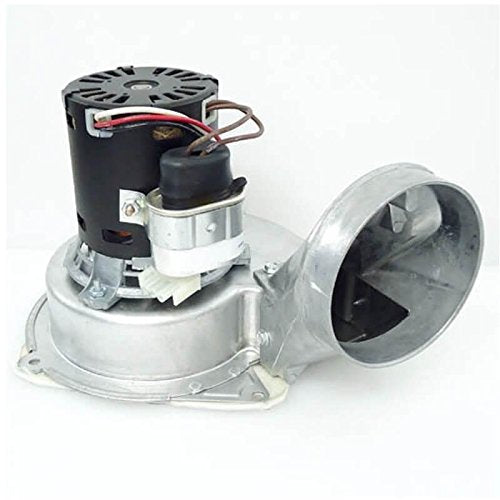

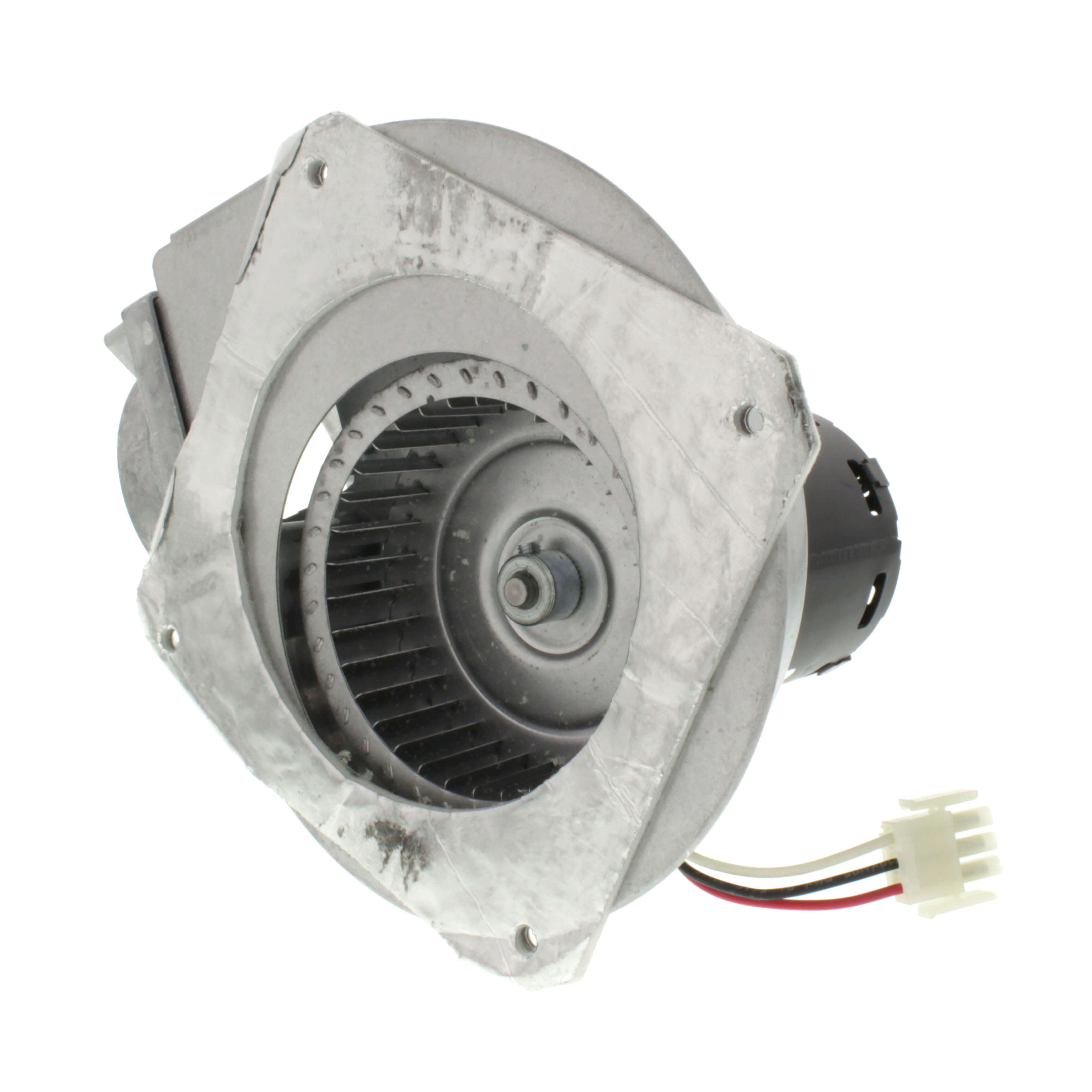

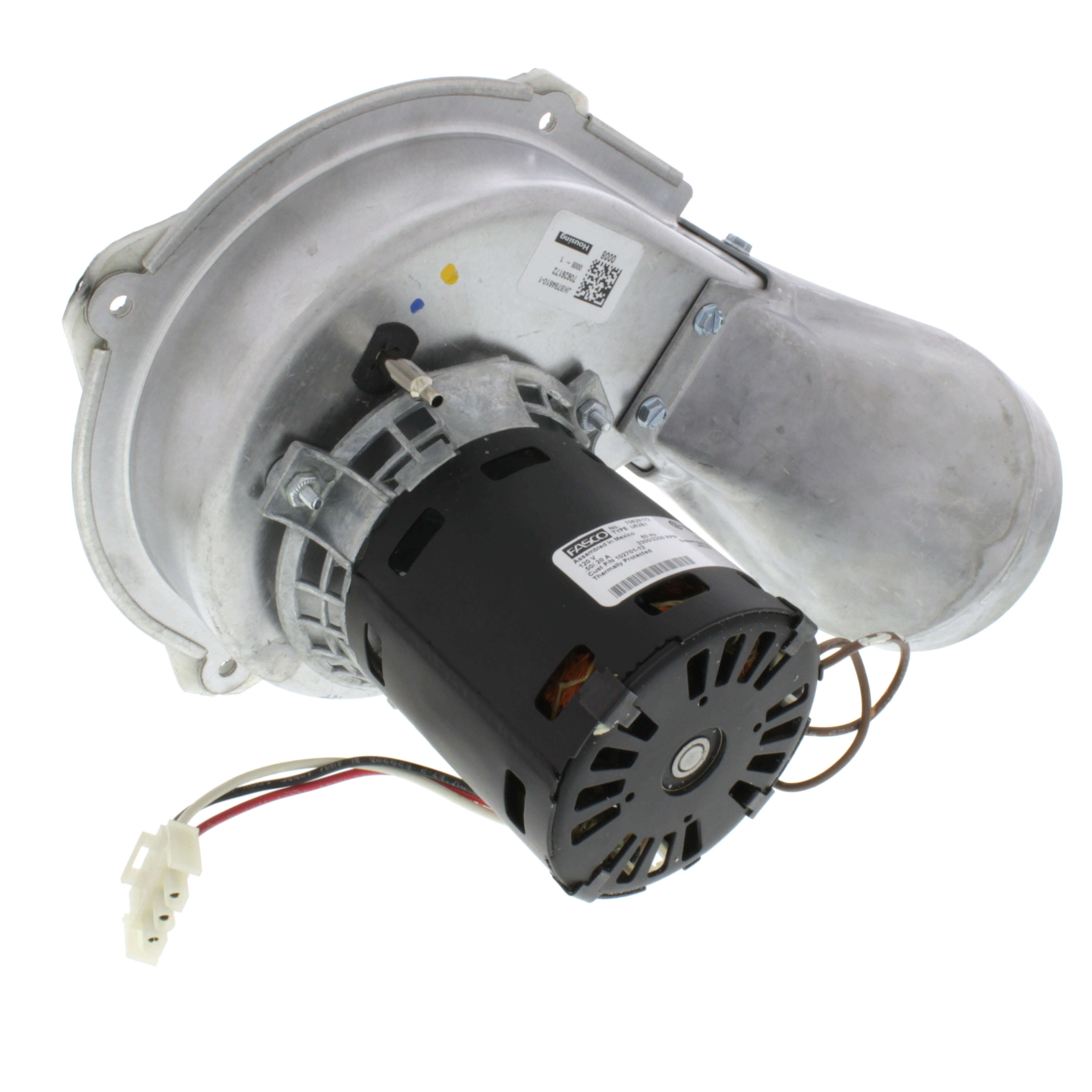

Lennox 73W09 Combustion Air Blower 1/40 HP (1 Pack) LB-94724T

Product Description

The Lennox 73W09 (LB-94724T) is a combustion air inducer/blower assembly for residential heating systems. It operates at 120 V, 60 Hz with a 1/40 HP motor and a speed range of 2200–3300 RPM, and is offered as an OEM HVACR service part. The assembly is listed with a unit weight of 13.7 lbs and is compatible with select EL280UH series furnace models.

• 120 V, 60 Hz combustion air inducer with 1/40 HP motor and 2200–3300 RPM speed range
• OEM Lennox part LB-94724T (MPN 73W09) for residential HVAC combustion air applications
• Unit weight 13.7 lbs; listed compatible with select EL280UH series furnace models

Product Highlights

120 V combustion air blower, 1/40 HP, 2200–3300 RPM; OEM Lennox LB-94724T (MPN 73W09); compatible with select EL280UH series models

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 73W09

Technical Specifications

• Brand: Lennox
• MPN: 73W09
• Model: LB-94724T
• Product Type: Combustion air blower / inducer assembly
• Input Voltage: 120 V
• Frequency: 60 Hz
• Horsepower: 1/40 HP
• Speed (RPM): 2200 - 3300 RPM
• Phase: 1 Phase
• Motor Type: PSC
• Rotation: CWLE
• Weight: 13.7 lb
• Compatible Models: EL280UH070P24A-1; EL280UH070P36A-1; EL280UH070XP36A-1; EL280UH090P36B-1; EL280UH090P48B-1; EL280UH090XP48B-1; EL280UH110P48C-1; EL280UH110P60C-1; EL280UH110XP60C-1; EL280UH135P60D-1
• Category: HVACR service parts / OEM combustion air blower
• Application: Combustion air induction for residential furnaces and boilers
• Reference ID: LENNOX73W09
• UPC: 662551418484
