Lennox 73W01 ECM Motor 1/2 hp (Motor Only / 606007-01)

Product Description

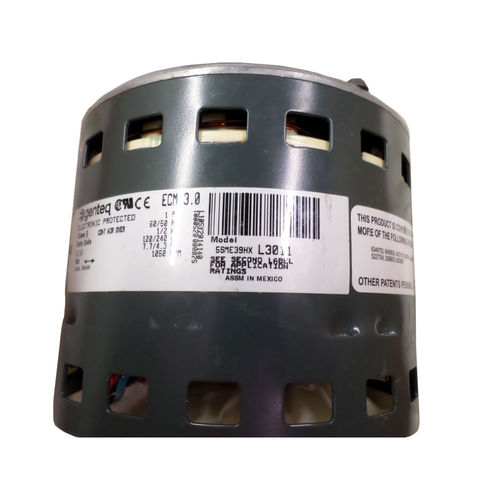

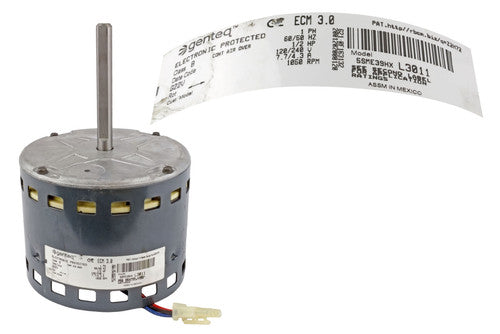

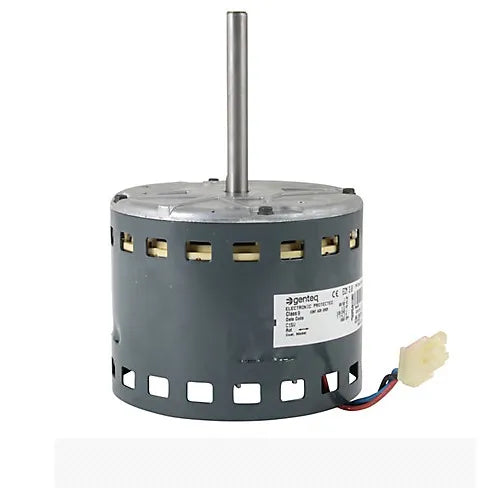

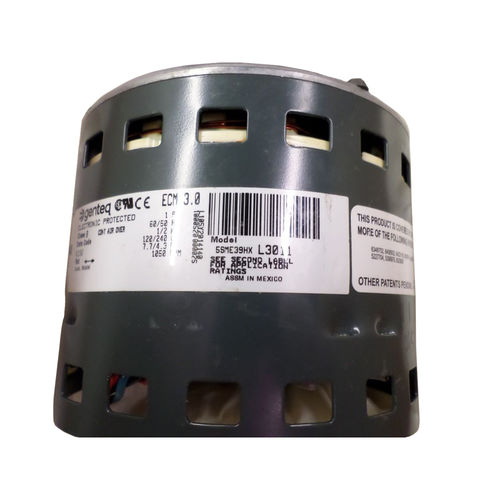

The Lennox 73W01 is a replacement ECM blower motor (MPN 73W01) rated at 1/2 hp and sold as motor only. It uses ECM 3.0 technology for variable-speed blower operation and is identified with manufacturer part 606007-01. The motor is configured for belly-band mounting in a horizontal position and has a 1/2 x 3.92 inch shaft suitable for compatible Lennox HVAC blower assemblies.

• ECM 3.0 electronically commutated motor, 1/2 hp, variable speed (motor only)
• Electrical: 120/240 V, 50/60 Hz, single phase, 4.3/7.7 A; speed ~1050 RPM, reversible
• Mechanical: belly-band mounting, horizontal position, 48 frame, shaft size 1/2 x 3.92 in; shaft length listed as ~4 in

Product Highlights

OEM Lennox replacement blower motor (73W01 / 606007-01), 1/2 hp ECM 3.0, variable speed, motor only.

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 73W01
• Country of Origin: United States

Technical Specifications

• Brand: Lennox
• MPN: 73W01
• Manufacturer Part Number: 606007-01
• Motor Type: ECM (electronically commutated motor)
• ECM Version: 3.0
• Horsepower: 1/2 HP
• Input Voltage: 120/240 V
• Frequency: 50/60 Hz
• Phase: Single phase
• Current (Amps): 4.3/7.7 A
• Speed (RPM): 1050 RPM (listed)
• Rotation: Reversible
• Number of Speeds: Variable
• Frame Size: 48
• Mounting Type: Belly-band
• Mounting Position: Horizontal
• Shaft Size: 1/2 x 3.92 in
• Shaft Diameter: 1/2 in
• Shaft Length: 4 in (listed in sources)
• Product Diameter: 5.58 IN (listed)
• Includes: Motor only (core not included)
• Reference / Replacement Part Numbers: LENNOX73W01; 5SME39HZL3011; 606007-01
• UPC: 066255141613
• Country of Origin: Mexico
