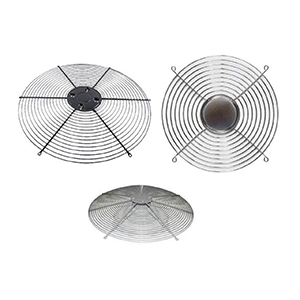

Lennox 72L76 Fan Guard Coil Assembly Hvac System

Product Description

The LENNOX 72L76 is a fan guard coil assembly designed to protect the coil and fan components within an HVAC system. This component serves as a protective guard, shielding the coil section from physical damage and debris while allowing adequate airflow through the unit. Weighing 2.0 pounds, it is a direct-fit replacement part intended for installation by licensed HVAC technicians during routine maintenance, system repair, or equipment rebuild. The assembly is suited for units where the existing guard has been damaged, corroded, or is otherwise compromised.

This fan guard coil assembly is used on HVAC systems where coil and fan protection is required at the unit exterior or interior panel. It is appropriate for residential and light commercial applications depending on the specific system configuration. Technicians typically encounter this part during seasonal inspections or after physical damage has occurred to the outdoor or air-handling unit. Installation is straightforward and requires minimal tooling.

Key Features

• Provides physical protection for coil and fan components against debris and impact
• Lightweight construction at 2.0 pounds for easier handling during service
• Direct replacement assembly for damaged or corroded factory guard coil units
• Designed to maintain proper airflow characteristics across the coil section

Compatibility

Designed as an OEM-style replacement fan guard coil assembly for HVAC systems requiring this component type.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before beginning any service work involving the fan guard or coil section. Inspect mounting points and fastener locations before removing the existing guard to ensure the replacement seats correctly. Follow all applicable local mechanical codes and manufacturer service documentation during installation.

Technical Specifications

• Item Type: Fan Guard Coil Assembly
• Application: HVAC System
• Weight: 2.0 pounds

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 72L76
