Lennox 71W49 Roll Out Switch (210F) (1 Each) 102907-01

Product Description

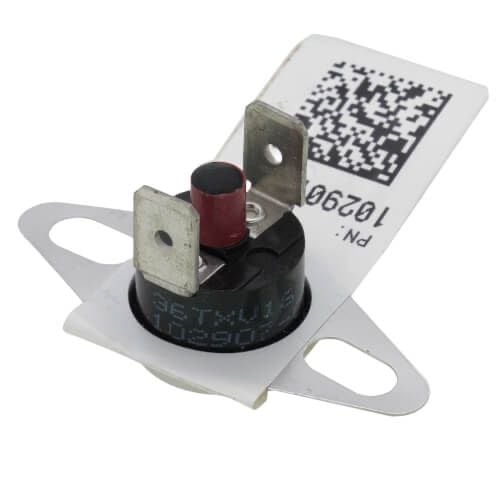

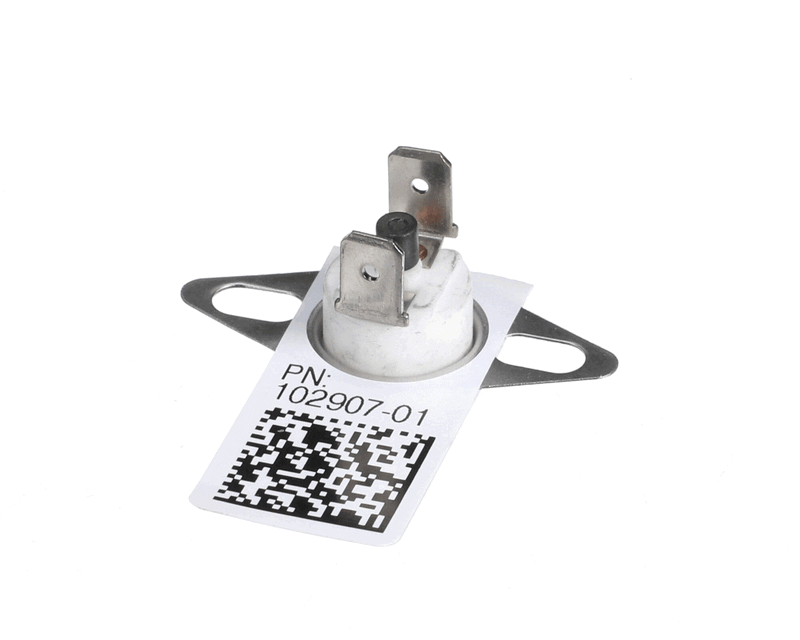

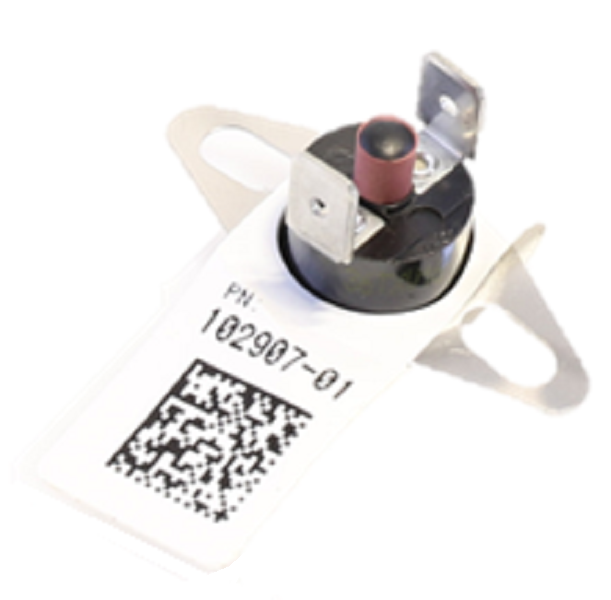

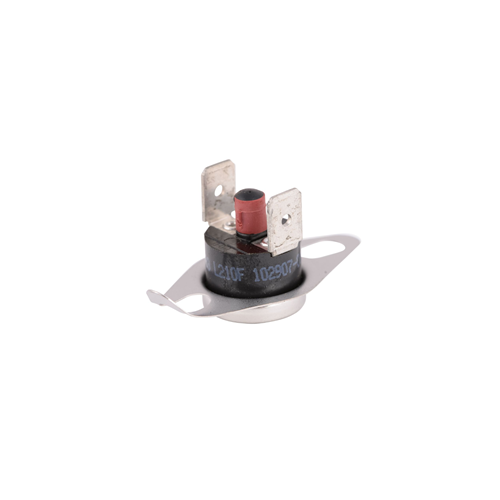

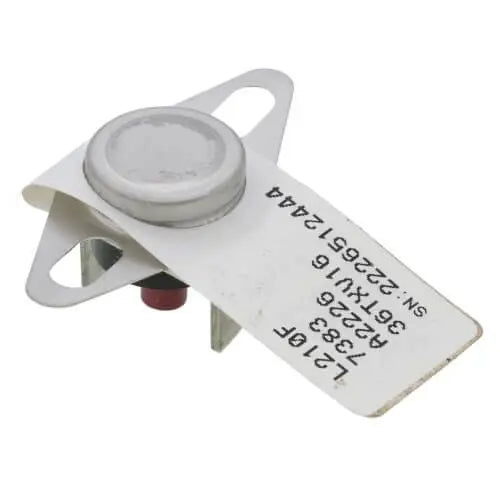

The Lennox 71W49 is a temperature-activated roll-out safety switch (OEM 102907-01) that opens at 210°F to protect heating equipment. It functions as a rollout/limit switch for HVAC and furnace burner compartments, interrupting the control circuit when overheat or flame rollout is detected. The unit is supplied as a single replacement part and is used in Lennox furnaces for over-temperature protection and flame rollout detection.

• Trip temperature rated to open at 210°F for overheat and flame rollout protection
• Manual-reset SPST limit switch designed for furnace burner vestibule and HVAC use
• OEM Lennox replacement (102907-01 / 71W49), sold as a single unit

Product Highlights

Rollout safety switch, 210°F trip, manual reset, OEM Lennox replacement

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 71W49
• Country of Origin: United States

Technical Specifications

• Brand: Lennox
• Manufacturer: Lennox
• MPN: 71W49
• OEM Part Number: 102907-01
• Product Type: Roll out switch / limit switch
• Function: Temperature-activated safety roll-out switch / overheat protection
• Trip Temperature: 210°F
• Reset Type: Manual reset
• Switch Type: SPST (Single Pole Single Throw)
• Circuit / Voltage: Breaks 24V furnace control circuit
• Application: HVAC / furnace burner vestibule for flame rollout detection
• Compatible Models / Series: Compatible with multiple Lennox furnace models (examples include G23, G26, G32, G40)
• Package Dimensions: 7.01 x 4.96 x 0.75 inches
• Package Weight: 0.64 ounces
• Unit Count: 1
• Face Type: Closed face
• Country of Origin: United States
• ASIN: B00D5YKYMM
