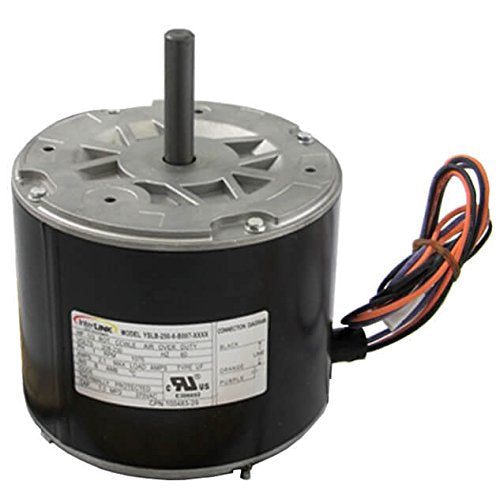

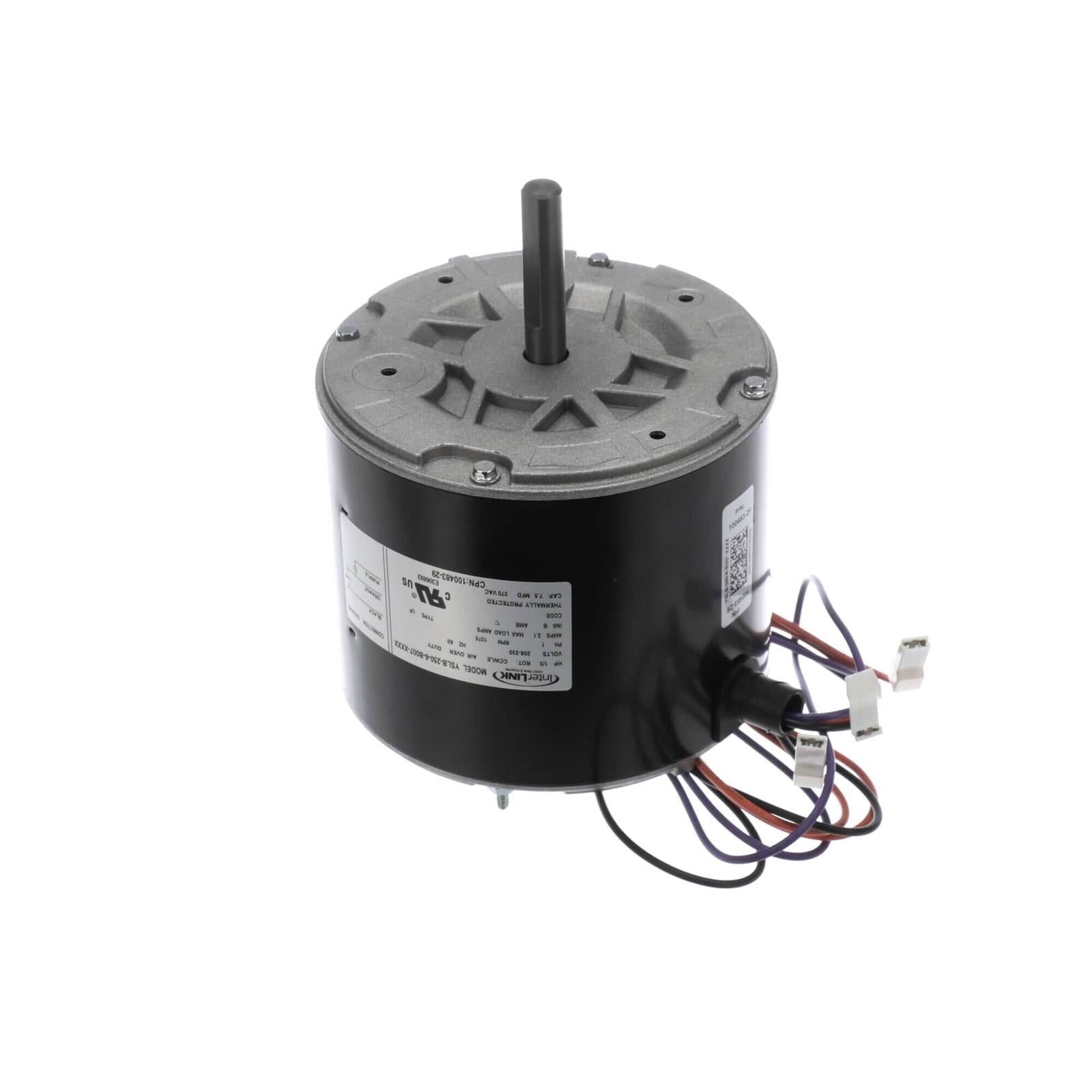

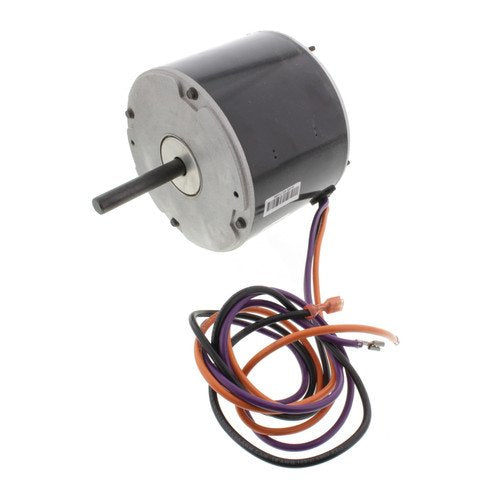

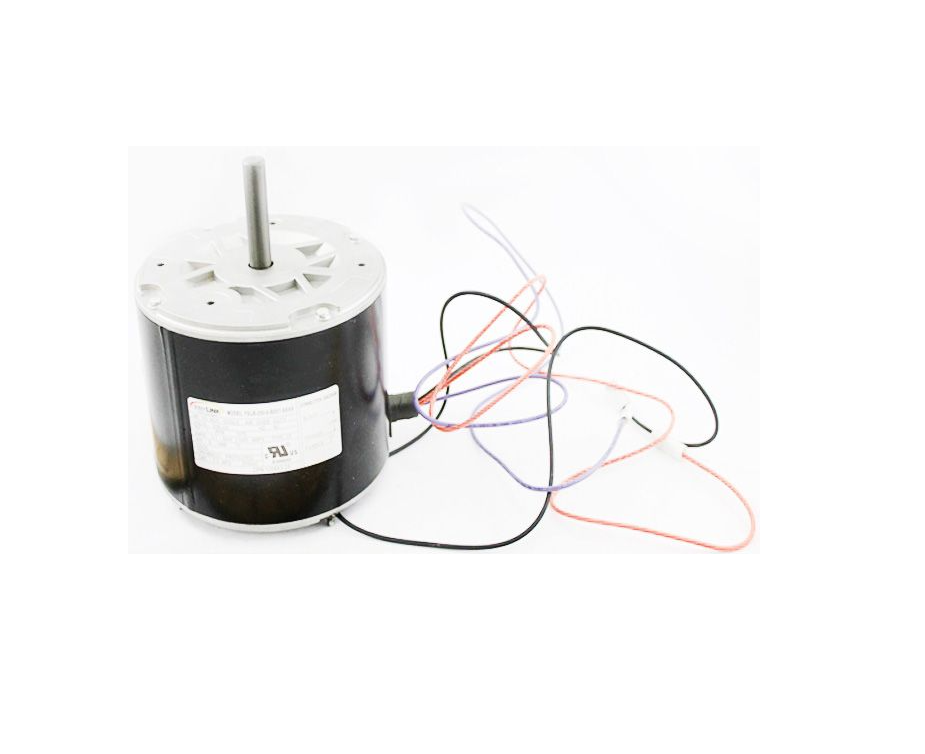

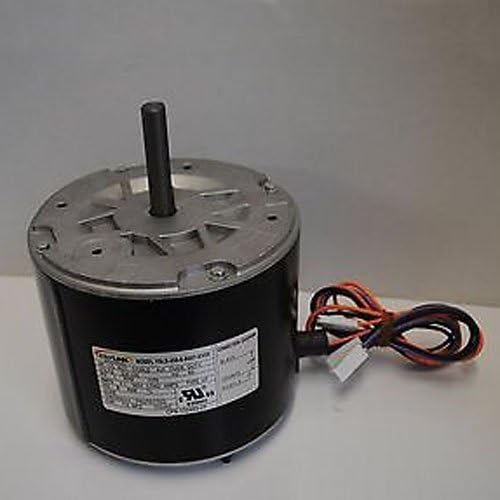

Lennox 68J24 Motor 1/3 HP (1075 RPM) 68J2401

Product Description

The Lennox 68J24 is a single-phase electric motor rated 208/240V, 1/3 HP, and 1075 RPM, intended for replacement or utility use in HVAC and condenser fan applications. It operates at 60 Hz in a single-speed configuration and is listed with sleeve bearing construction and counterclockwise rotation. Reported specifications include a 48 frame size, approximately 2.1 A full-load current, listed weight of 12.34 lb, and dimensions near 13 x 11 x 9 inches.

• Input Voltage: 208/240V, 60 Hz single-phase operation
• Power and speed: 1/3 HP, 1075 RPM, single-speed motor
• Construction and compatibility: sleeve bearing, counterclockwise (CCW) rotation, 48 frame; intended for condenser fan/HVAC replacement

Product Highlights

Single-phase 208/240V condenser fan motor, 1/3 HP, 1075 RPM, CCW rotation; replacement MPN 68J2401.

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 68J24
• Country of Origin: Mexico

Technical Specifications

• Brand: Lennox
• Manufacturer: Lennox
• Manufacturer Part Number: 68J24
• Replacement MPN: 68J2401
• Product Type: Electric motor (condenser fan motor)
• Input Voltage: 208/240V
• Frequency: 60 Hz
• Phase: Single-phase
• Horsepower: 1/3 HP
• Speed (RPM): 1075 RPM
• Full-load Current: 2.1 A
• Bearing Type: Sleeve
• Rotation: Counterclockwise (CCW)
• Frame Size: 48
• Dimensions: 13 in x 11 in x 9 in (33.02 cm x 27.94 cm x 22.86 cm)
• Weight: 12.34 lb
• Country of Origin: Mexico
