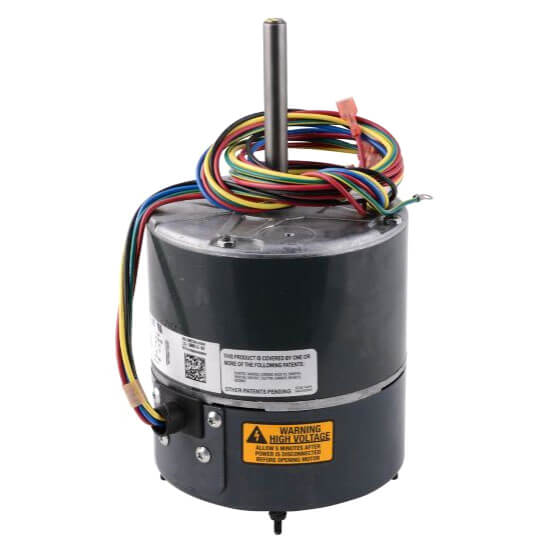

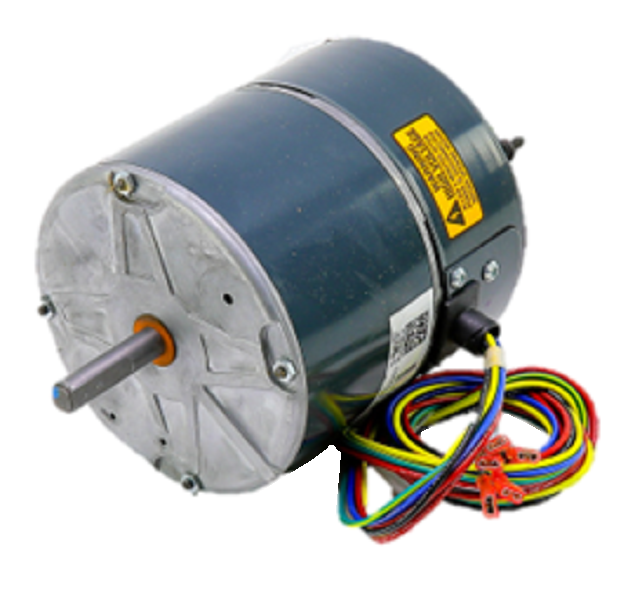

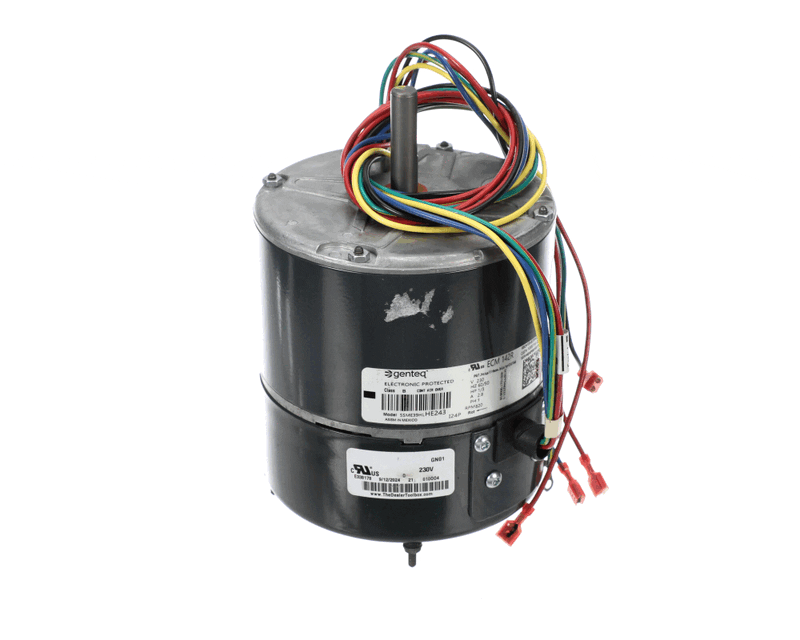

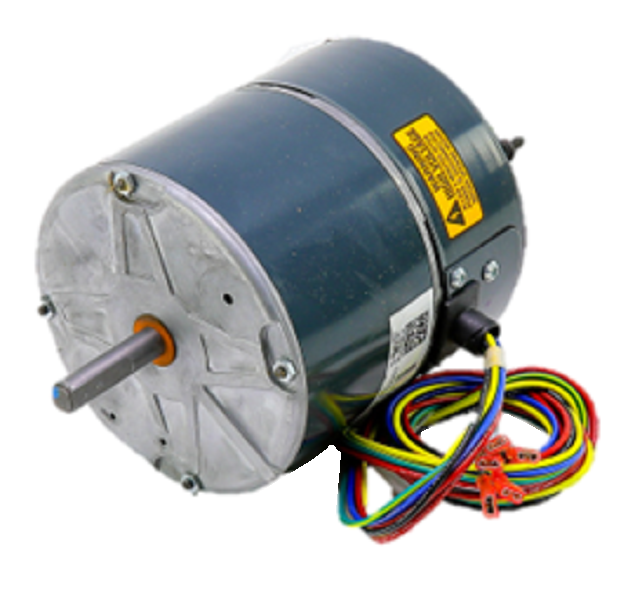

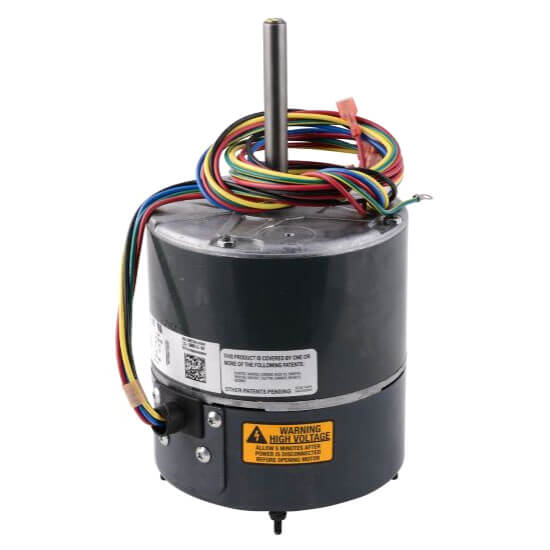

Lennox 63W62 Motor Fan 1/3 HP Variable (Assembly) 100016-03

Product Description

Lennox 63W62 is a 1/3 HP variable-speed motor fan assembly (replacement for 100016-03) intended for Lennox and Allied Air condenser applications. It operates on 208-230 V single-phase power and uses ECM variable-speed control with a 0-820 RPM range and integrated ball bearings. The 48-frame motor includes a 1/2 x 2 in shaft, counterclockwise lead-end rotation, vertical stud mounting, and weighs approximately 8 lb.

• 1/3 HP ECM variable-speed motor fan; OEM replacement for part 100016-03
• Input voltage 208-230 V AC, single-phase; 60 Hz; rated current 2.8 A
• 48-frame with 1/2 x 2 in shaft, 0-820 RPM range, ball bearings, CCWLE rotation, vertical stud mount

Product Highlights

OEM 1/3 HP variable-speed condenser fan motor for Lennox/Allied Air; 208-230 V, 0-820 RPM, vertical stud mount

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 63W62
• Country of Origin: USA

Technical Specifications

• Brand: Lennox
• Manufacturer Part Number: 63W62
• Replacement For: 100016-03
• Product Type: Condenser fan motor
• Horsepower: 1/3 HP
• Motor Type: ECM variable speed
• Input Voltage: 208-230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Current: 2.8 A
• Speed Range: 0-820 RPM
• Frame: 48
• Shaft Size: 1/2 x 2 in
• Rotation: Counterclockwise lead end (CCWLE)
• Bearing Type: Ball bearings
• Mounting Type: Stud mount
• Mounting Position: Vertical
• Dimensions: 12 x 10 x 8 in
• Weight: 8 lb
• Country of Origin: USA
• Fits Models: ML16XP1-036-230A-01; ML16XP1-060-230A-01; ML16XP1-042-230A-02
