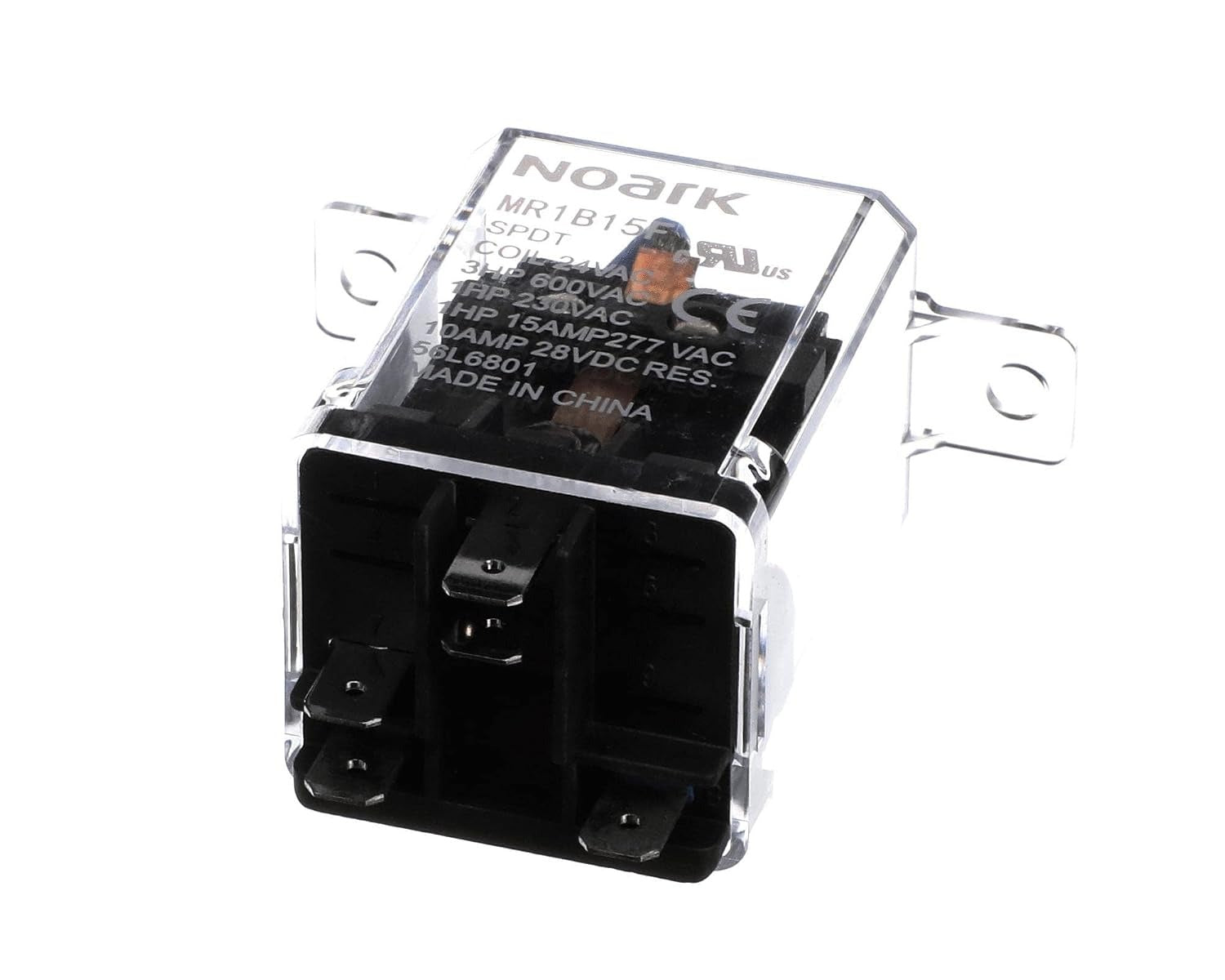

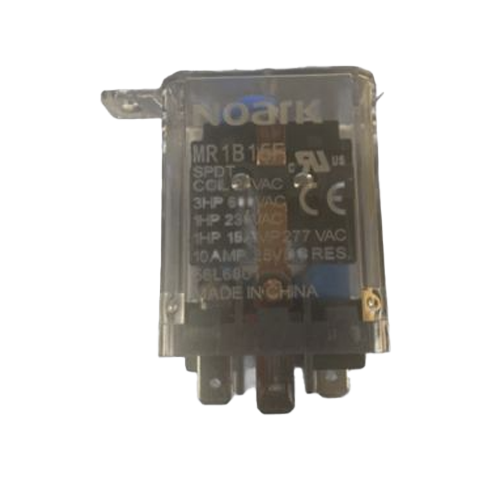

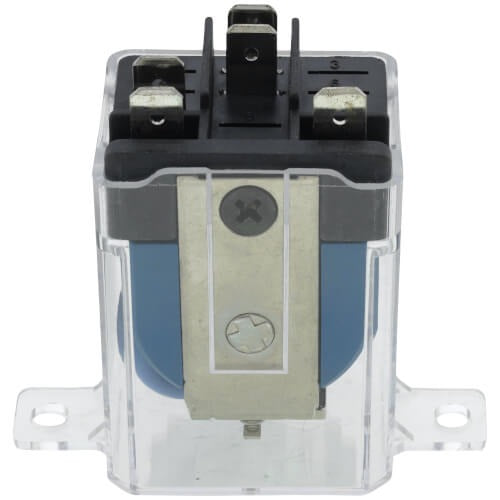

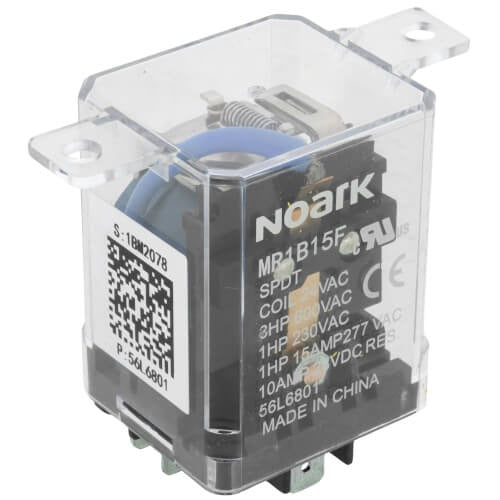

Lennox 56L68 Ice Cube Relay 24 VAC (2 x 2 x 2 inches) 56L6801

Product Description

The Lennox 56L68 is a replacement ice-cube style relay for Lennox ice-making and blower applications. It uses a 24 VAC coil with an SPDT contact configuration to switch higher-voltage circuits from a low-power control signal. The relay is rated for 208/240 volts operation, with a full load amperage of 8 A, locked rotor amperage of 48 A, and a 1 HP motor rating. Dimensions are approximately 2 x 2 x 2 inches and weight about 1 pound.

• 24 VAC coil with SPDT (single pole double throw) contact configuration; one N.O. and one N.C. contact set
• Rated for 208/240 volts operation; FLA 8 A, LRA 48 A, 1 HP motor rating
• Compact ice-cube style dimensions approximately 2 x 2 x 2 inches; approximate weight 1 pound

Product Highlights

24 VAC coil SPDT relay for Lennox ice maker and blower applications; rated 208/240 V, 8 A FLA/48 A LRA; compact 2 x 2 x 2 in form

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 56L68
