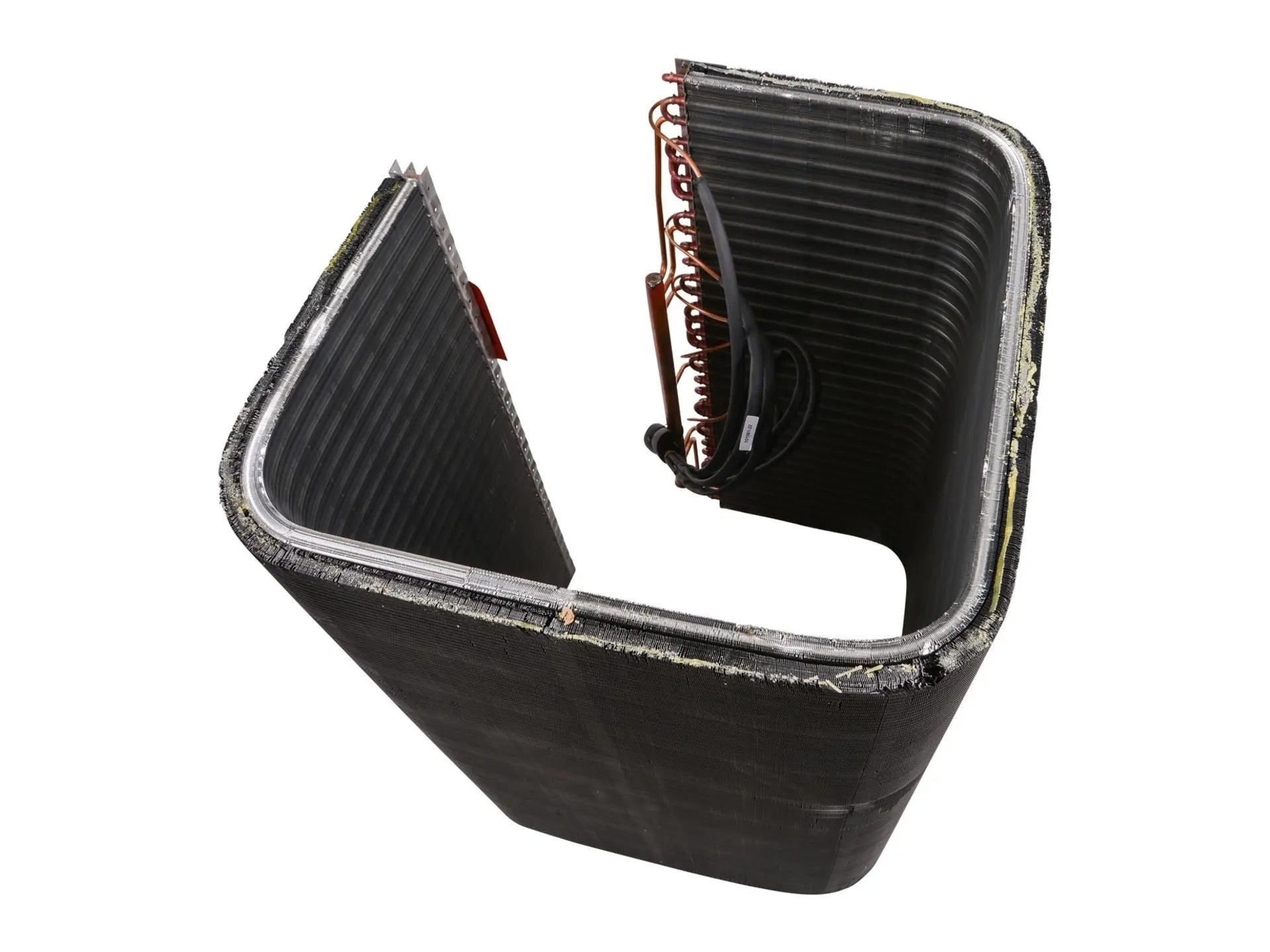

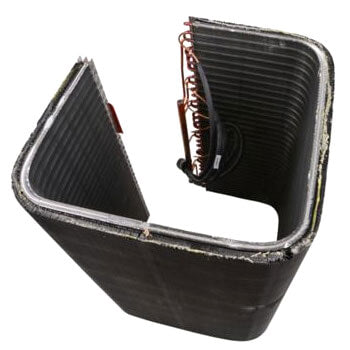

Lennox 33W96 Condenser Coil Assembly 1.5 to 3 Ton (28 in) LB-87170DK

Product Description

The Lennox 33W96 condenser coil assembly is an OEM condenser coil designed to remove heat from refrigerant in outdoor condensing units. It is specified for 1.5 to 3 ton systems and features a slab design with a 28 in coil height and a 13 sq ft face area to facilitate heat transfer. The unit includes a high fin density and is compatible with multiple Lennox 13ACX and 14ACX models.

• Transfers heat from refrigerant to outside air using tubes and fins; face area 13 sq ft and 26 fins per inch.
• Replacement part compatible with Lennox models 13ACX and 14ACX and listed replacement MPN LB-87170DK.
• Physical dimensions include 28 in coil height and 68 in distance between end plates; depth approximately 23 in.

Product Highlights

OEM Lennox condenser coil assembly for 1.5�3 ton systems; 28 in coil height, 13 sq ft face area, 26 fins/in, replacement MPN LB-87170DK

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 33W96

Technical Specifications

• Brand: Lennox
• MPN: 33W96
• Replacement MPN: LB-87170DK
• Product Type: Condenser Coil Assembly
• Tonnage: 1.5 to 3 Ton
• Compatible Models: 13ACX; 14ACX; TSA030S4-1; TSA036S4-1; TSA036S4-10; TSA036S4-3
• Coil Height: 28 in
• Distance Between End Plates: 68 in
• Face Area: 13 sq ft
• Fins Per Inch: 26
• Tubes High: 28
• Product Length: 68 in
• Product Width: 23 in
• Product Height: 28 in
• SKU: 33W96
• EAN / UPC: 66255145162
