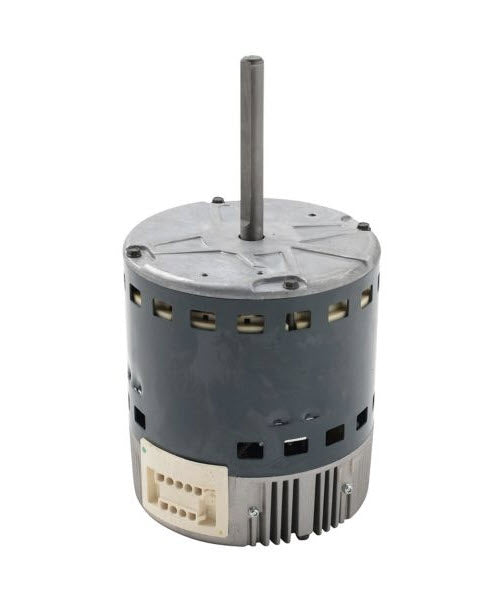

Lennox 27U47 ECM Programmable Blower Motor 1/2HP

Product Description

The Lennox 27U47 ECM Programmable Blower Motor is a motor rated at 1/2 horsepower designed for use in HVAC systems. This motor operates at a voltage of 208-230 VAC, single phase, and supports frequency of 50/60Hz. The speed range of the motor is adjustable between three hundred and twelve hundred RPM with five distinct speed settings. It features a counterclockwise left-hand (CCW LE) rotation, making it suitable for various blower applications.

• ECM Programmable motor type
• Operates at 208-230 VAC, 1 phase, 50/60Hz
• Rotation: CCW LE

Product Highlights

The Lennox 27U47 is tailored for efficient airflow control in residential and commercial heating and cooling systems. Its ECM technology ensures optimal energy efficiency across various speeds, making it a preferred choice for HVAC professionals.

Product Information

Standard Information

• Brand: Lennox
• Catalog Number: 27U47

Technical Specifications

• Model/Part Number: 627537-01
• Motor Type: ECM Programmable
• RPM: 300-1200 RPM
• Motor HP: 1/2 HP
• Number of Speeds: 5 Speed
• Frame Size: 48N
• Motor Voltage: 208-230 VAC 1 Ph 60 Hz
• Rotation: CCW LE
