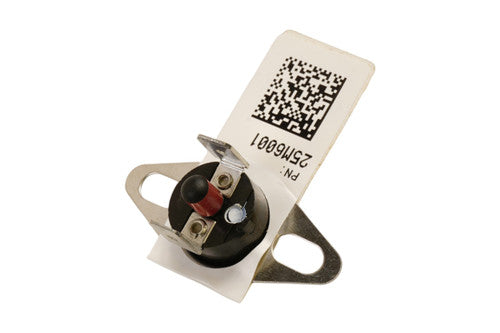

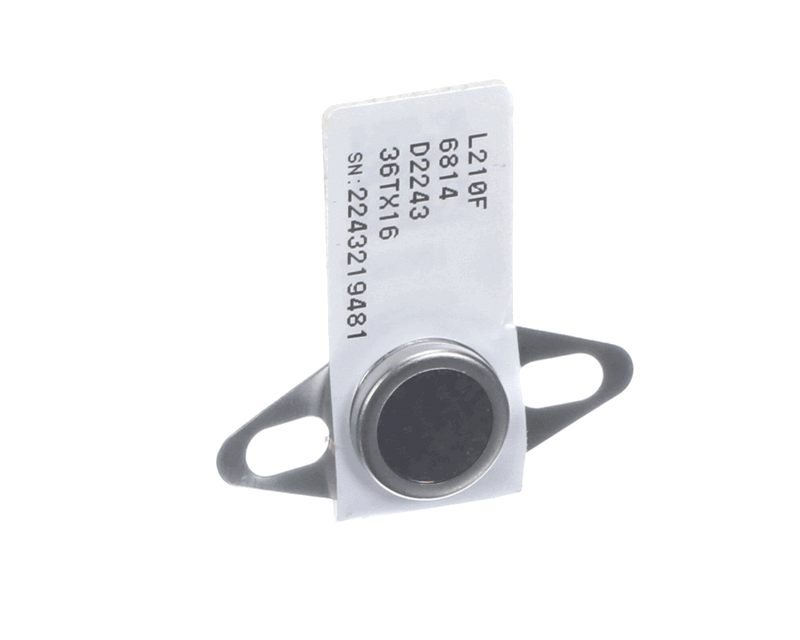

Lennox 25M60 Control-Limit (Roll Out) 210F (1.6 x 1.3 x 1.0 in)

Product Description

Lennox 25M60 is a control-limit (roll out) switch rated to actuate at 210°F, designed as a safety rollout limit for HVAC equipment and furnaces. The device detects excessive flame or rollout conditions and interrupts equipment operation to reduce fire risk. It features a compact form factor (approx. 1.6 x 1.3 x 1.0 inches) and is provided as an OEM replacement component for compatible Lennox models.

• Actuation temperature: 210°F for rollout/limit safety detection
• Manual reset safety device, single-pole single-throw (SPST) contact configuration
• Compact dimensions approximately 1.6 x 1.3 x 1.0 inches; intended for furnace and HVAC use

Product Highlights

Safety rollout/limit switch for furnaces and HVAC systems; 210°F actuation; manual reset SPST normally closed contact; compact OEM replacement form factor.

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 25M60

Technical Specifications

• Brand: Lennox
• Manufacturer Part Number: 25M60
• Base Part Number: 11665540
• Product Type: Control-Limit / Flame Rollout Switch
• Temperature Rating: 210 °F
• Actuation Temperature: 210 °F
• Reset Type: Manual reset
• Switch Type: SPST (Single-Pole Single-Throw)
• Contact Action: Normally closed (opens on temperature rise)
• Dimensions (L x W x H): 1.6 x 1.3 x 1.0 in
• Application: Furnace and HVAC rollout/limit safety control
• Alternate/Related Part Numbers: 25M6001, 97L02, 25M6001 (catalog references)
