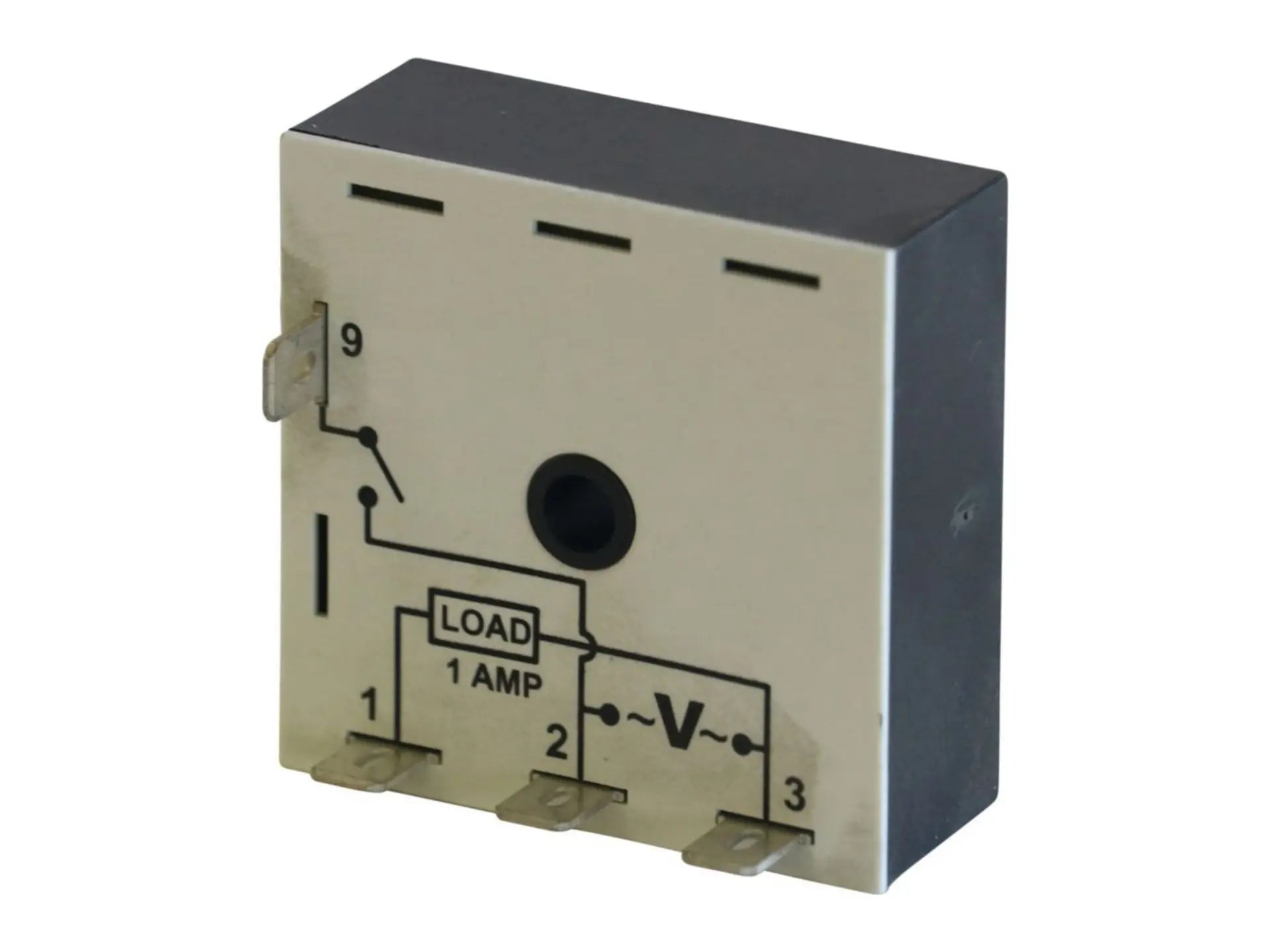

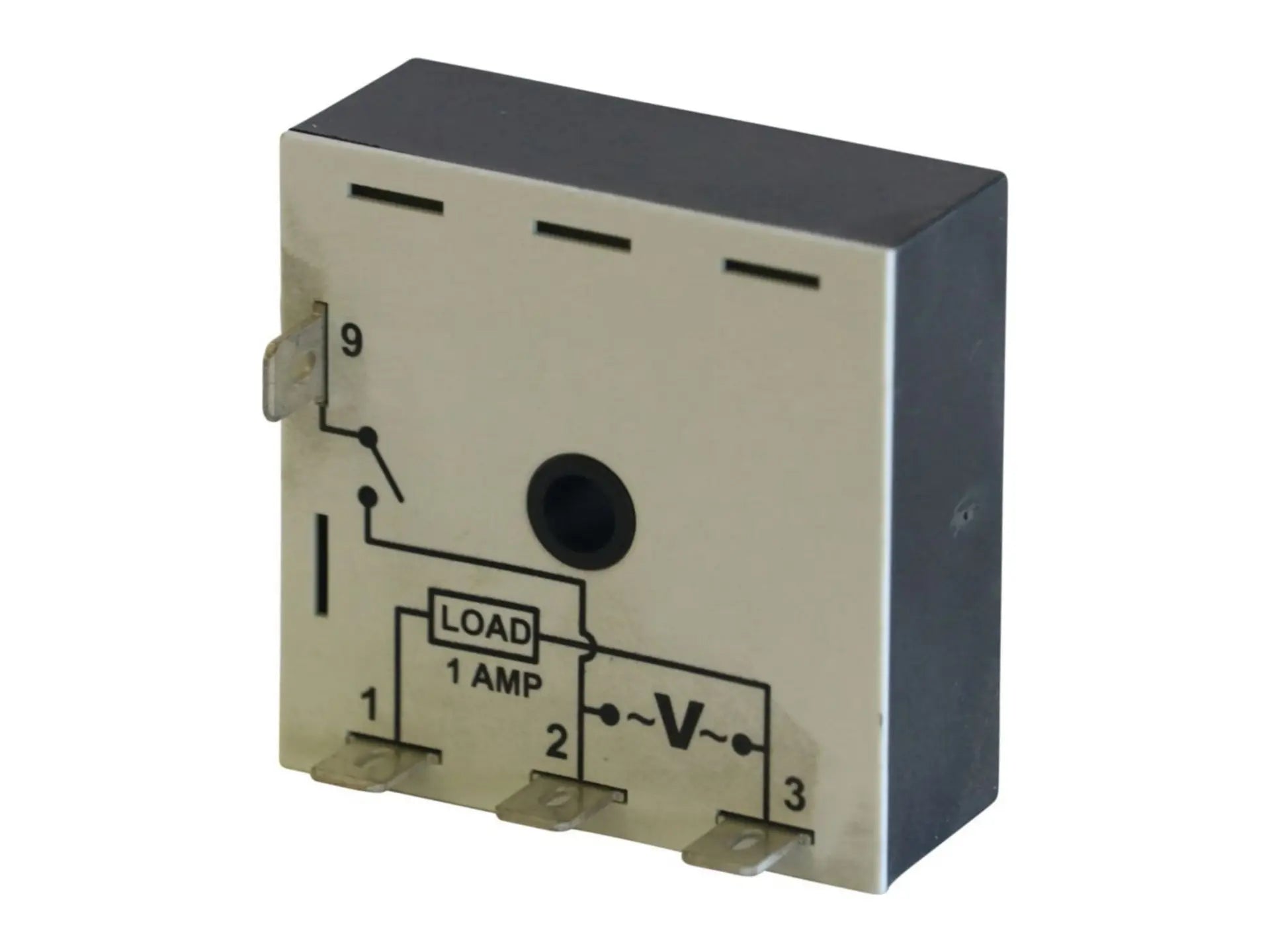

Lennox 12U99 Time Delay Relay 24 Vac (30 Sec) 103047-03

Product Description

The Lennox 12U99 is a time delay relay that provides a fixed 30-second delay-on-break function and operates on a 24 Vac coil. It uses DOB contacts for timed opening of circuits and is sized for panel or enclosure installation. Typical applications include HVAC control, industrial timing, lighting control, machine automation, and conveyor sequencing.

• Input voltage: 24 Vac coil; fixed 30-second delay-on-break timing
• DOB (delay on break) contacts for timed circuit opening and equipment sequencing
• Compact form factor suitable for panel or enclosure mounting; listed weight 0.2 lb

Product Highlights

24 Vac coil, fixed 30 sec delay-on-break, DOB contacts, compact panel/enclosure mount

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 12U99
• Country of Origin: United States

Technical Specifications

• Brand: Lennox
• MPN: 12U99
• Manufacturer Part Number: 103047-03
• Input Voltage: 24 Vac
• Delay Time: 30 seconds (fixed, delay on break)
• Contact Type: DOB (delay on break) contacts
• Weight: 0.2 lb
• Condition: New
• Country of Origin: United States
• Mounting Type: Panel or enclosure mounting
• Intended Applications: HVAC control, industrial timing, lighting control, machine automation, conveyor systems
