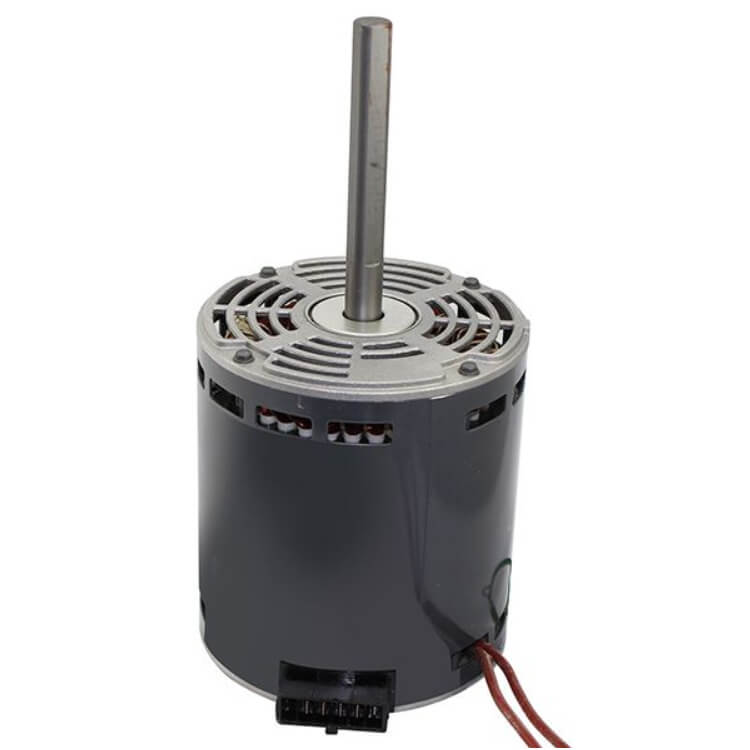

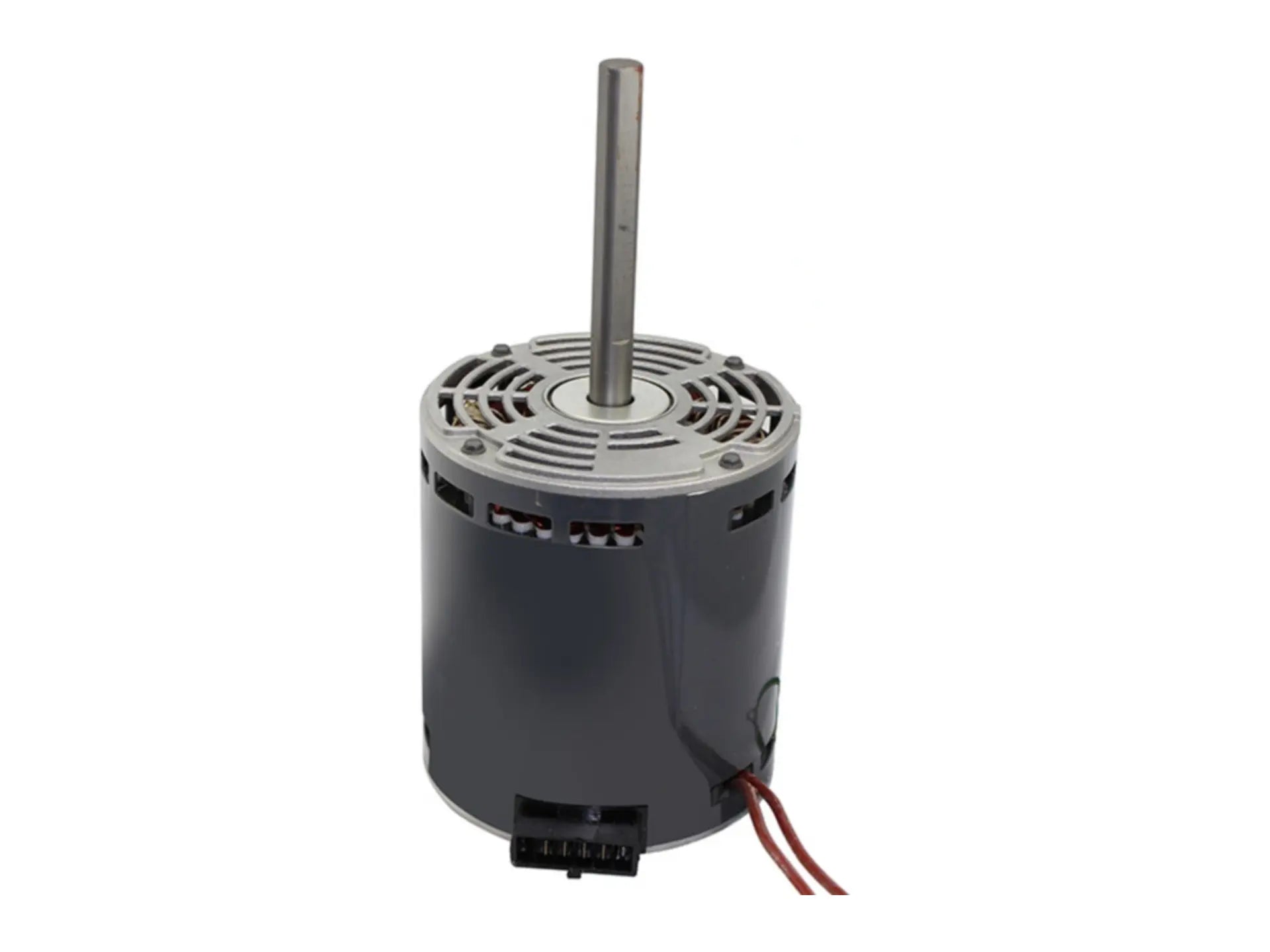

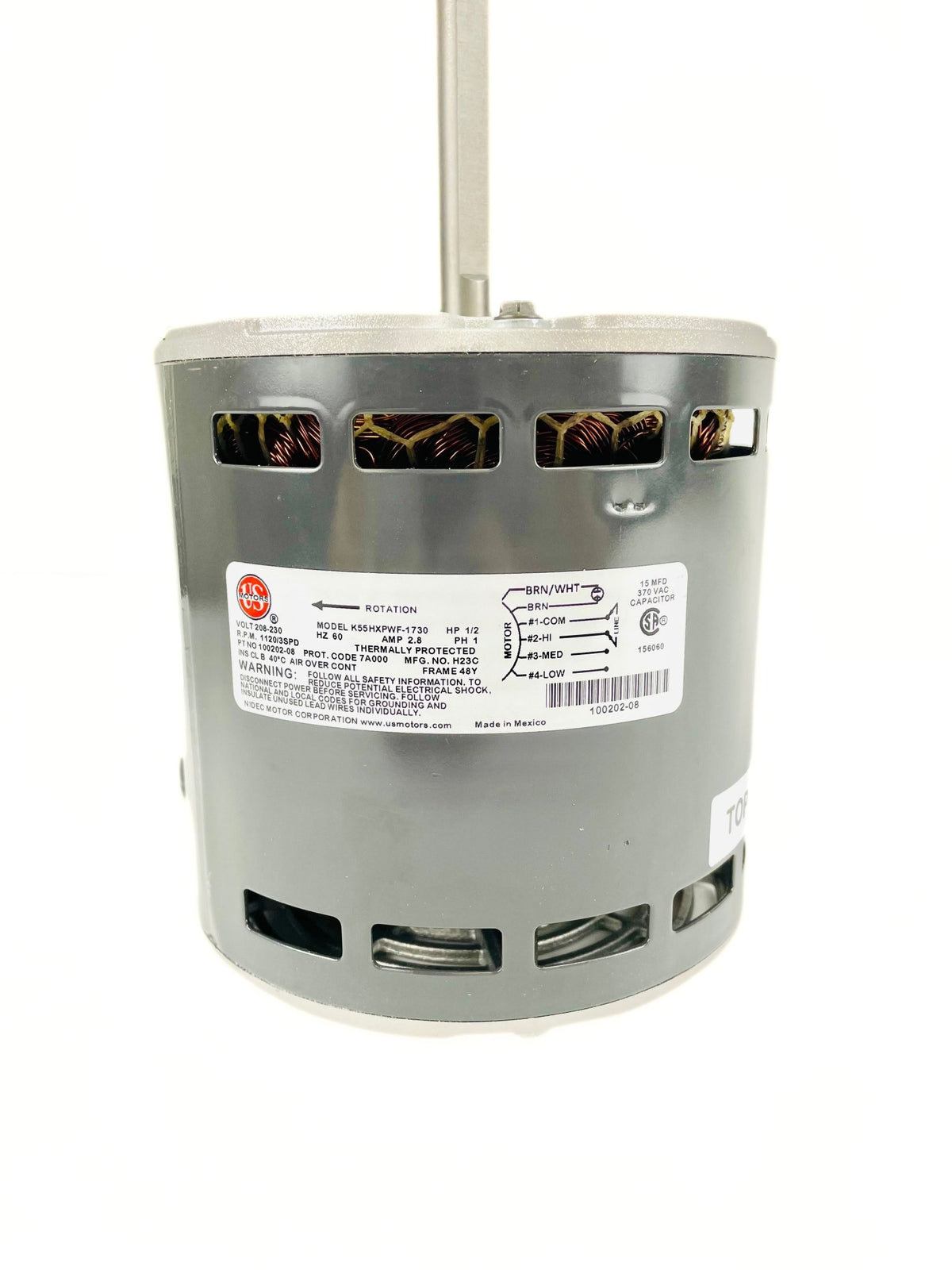

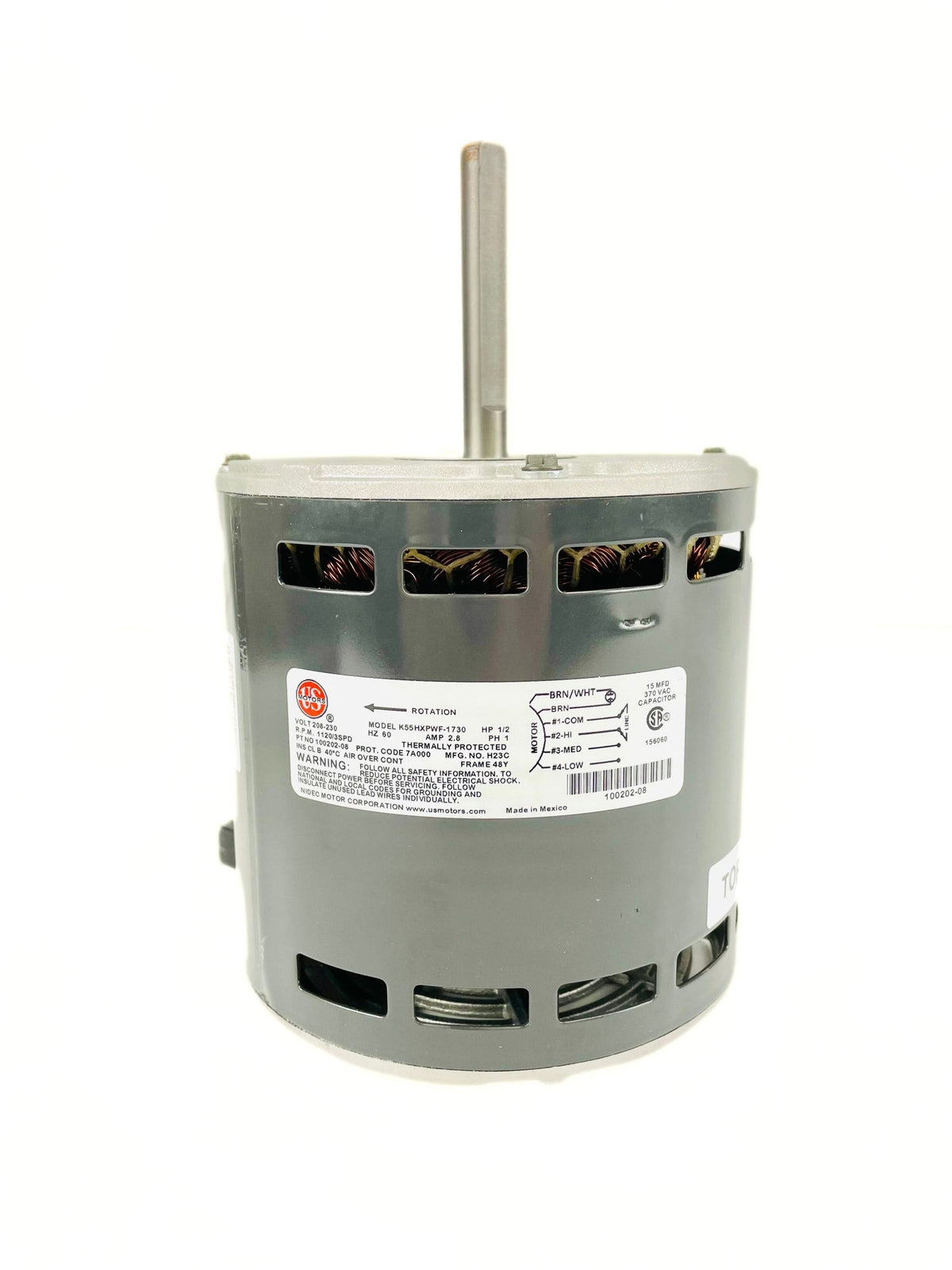

Lennox 12L13 Motor 1/2 HP, 3 Speed, 1120 RPM, 2.8A (208-230V) 100202-08

Product Description

The LENNOX 12L13 motor is a 1/2 HP, 3-speed motor that operates at 1120 RPM and 2.8A (208-230V). This OEM motor is designed for Lennox HVAC equipment and is compatible with commercial HVAC and refrigeration systems requiring reliable electrical components. It converts electrical energy into mechanical energy for equipment operation.

• 1/2 HP
• 3 Speed
• 1120 RPM
• 2.8A
• 208-230V

Product Highlights

The Lennox 12L13 motor ensures efficient airflow and fluid movement in HVAC systems and other machinery.

Product Information

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 12L13
• Country of Origin: United States

Technical Specifications

• RPM: 1120 RPM
• Phase: 1
• Speeds: 3
• Voltage: 208-230V
• Amperage: 2.8A
• Horse Power: 1/2 HP
• Brand: Lennox
• Catalog Number: 12L13
• Model/Part Number: 100202-08
• Material Description: Lennox 100202-08 Blower Motor, 1/2HP, 3 Speed, 208-230 Volts, 60 Hz, 1120 RPMRPM, 2.8 Amps
• RPM Range: 1120
• Hertz: 60 hz
• Motor Type: PSC
• Motor HP: 1/2 HP
• Number of Speeds: 3 Speed
• Frame Size: 48
• Motor Mounting Position: Horizontal
• Motor Mounting Type: Belly Band
• Motor Voltage: 208-230 VAC 1 Ph 60 Hz
• Shaft Size: 1/2 x 3 IN
• Capacitor Value: 15 MFD 370 VAC
• Rotation: CCWLE
• Bearing Type: Ball
• SKU: 12L13
• Condition: New
• Number of Phases: 1
• Type: MOTOR
• Compatible Product: Central Air Conditioner
• Country of Origin: United States
