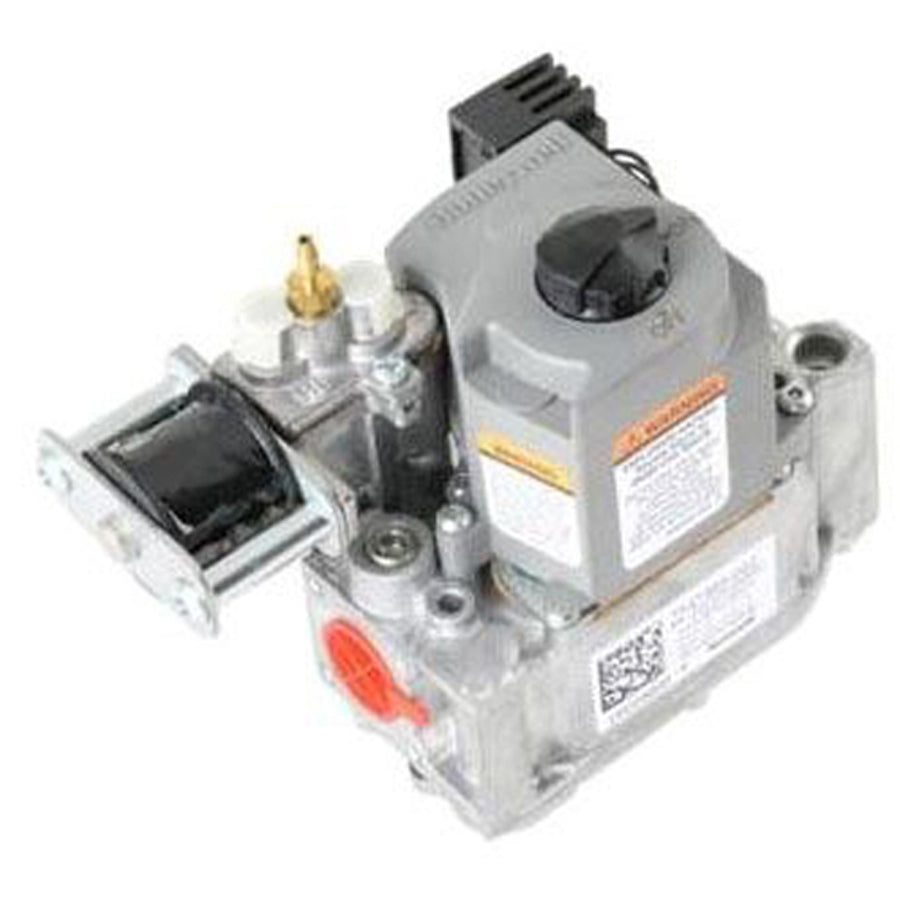

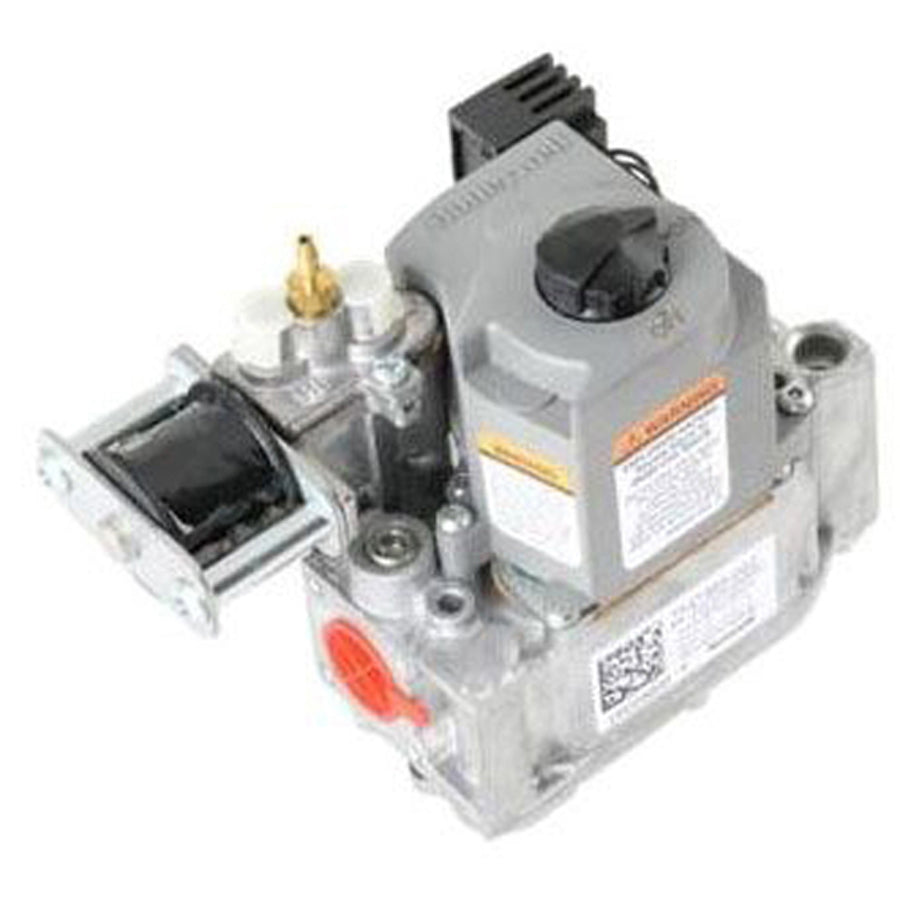

Lennox 10W60 Furnace Gas Valve 1/2 Inch 24V Natural Gas

Product Description

The LENNOX 10W60 is a natural gas valve designed for residential gas furnace applications. Operating on 24 volts AC, it controls gas flow to the burner assembly at a rated outlet pressure of 3.5 inches water column (WC). The valve features a 1/2 inch inlet connection, making it a direct-fit component for compatible furnace configurations. This part is installed by licensed HVAC technicians as part of gas valve replacement or furnace repair service. The 10W60 weighs 2.4 pounds and is built to OEM specifications for reliable field replacement.

This gas valve is suited for natural gas furnace systems requiring a 24-volt AC-controlled valve with a 1/2 inch gas connection. It is typically found in residential forced-air heating systems where precise gas pressure regulation at the burner inlet is critical to safe and efficient operation. HVAC service professionals replace this component when the existing valve fails to open, fails to close, or delivers incorrect outlet pressure.

Key Features

• Natural gas-rated valve for furnace applications
• 24-volt AC coil operation for standard low-voltage thermostat control circuits
• 3.5 inches WC rated outlet pressure for natural gas burner supply
• 1/2 inch inlet connection for direct installation in compatible furnace gas trains
• OEM-style replacement at 2.4 pounds for straightforward field swap

Compatibility

Designed as an OEM-style replacement gas valve for residential natural gas furnaces requiring a 1/2 inch, 24-volt AC, 3.5 inches WC natural gas valve.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC or gas service technician in accordance with local codes and IFGC requirements. Shut off the manual gas supply and disconnect power to the furnace before removing the existing valve. Verify inlet and outlet pressure settings with a manometer after installation and confirm all fittings are leak-tested with an approved gas leak detection solution. Do not apply thread sealant to flare-type fittings and do not over-tighten threaded gas connections.

Technical Specifications

• Valve Type: Gas Valve, Natural
• Application: Furnace
• Inlet Connection Size: 1/2 inch
• Control Voltage: 24 volts AC
• Outlet Pressure: 3.5 inches water column (WC)
• Gas Type: Natural Gas
• Weight: 2.4 pounds

Standard Information

• Brand: LENNOX
• Manufacturer Part Number: 10W60
