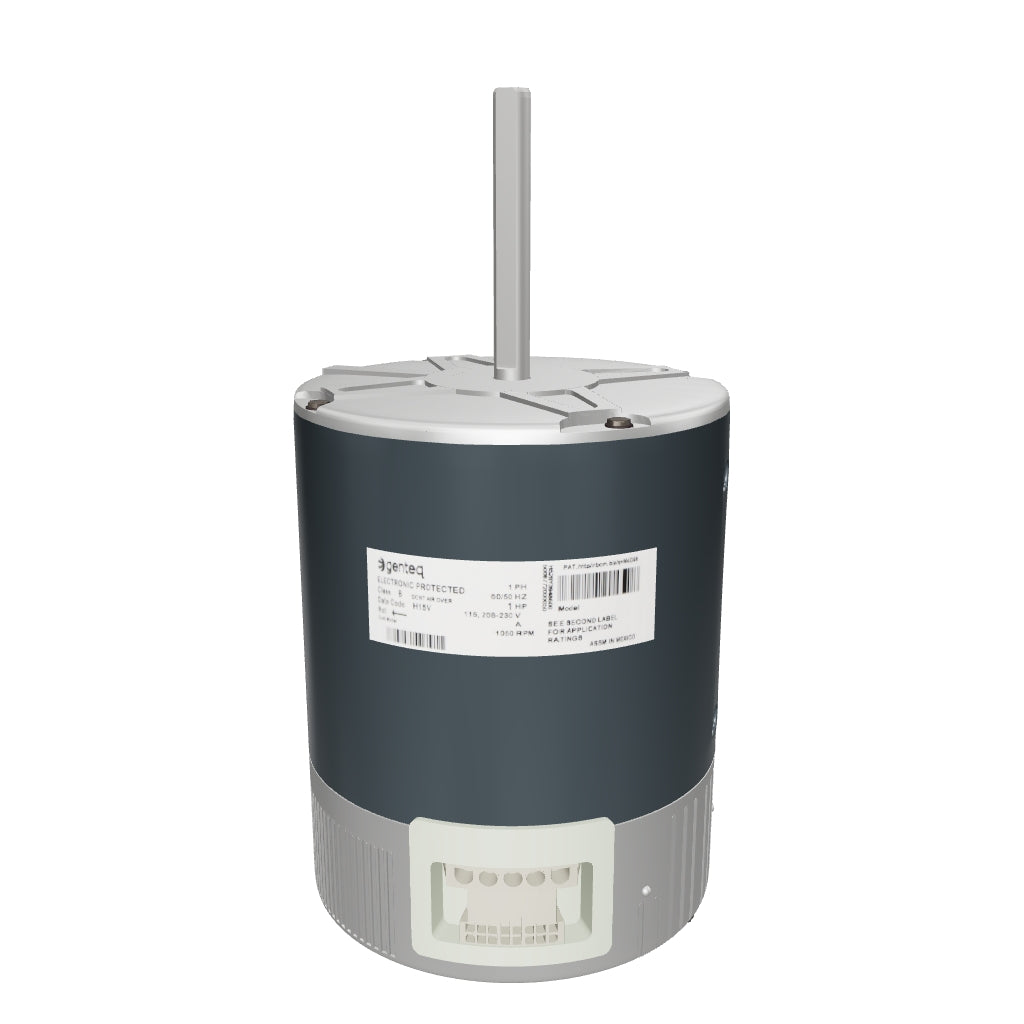

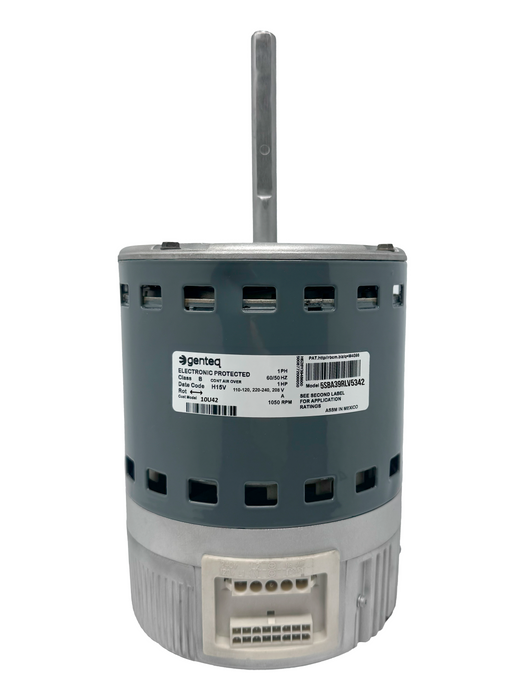

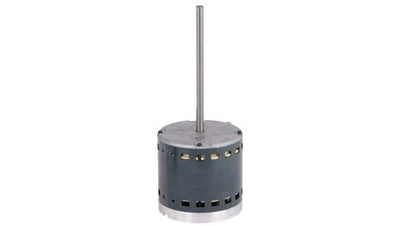

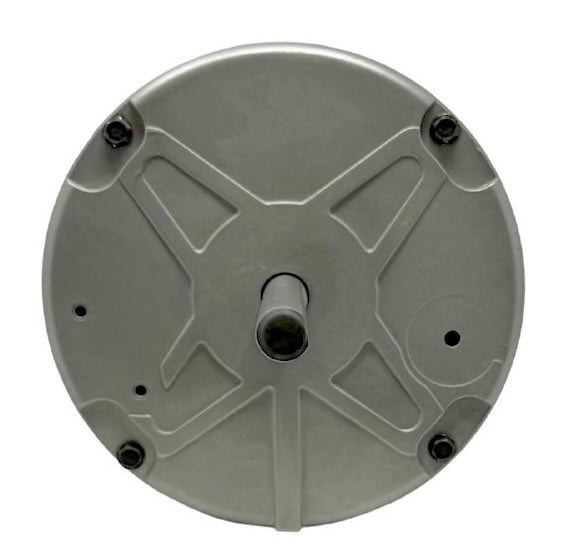

Lennox 10U42 Blower Motor ECM EON 1 HP 610588-04

Product Description

The Lennox 10U42 Blower Motor ECM EON 1 HP is a vital component for HVAC systems. It operates efficiently at voltages of one hundred ten to one hundred twenty volts, two hundred eight volts, and two hundred twenty to two hundred forty volts. Replacing an old or faulty motor with the 10U42 can significantly improve airflow and restore system performance.

• Plug and play setup, fully programmed
• Two-year replacement warranty included
• Free shipping available

Product Highlights

This motor offers reliable performance and is designed specifically for HVAC applications.

Product Information

Standard Information

• Catalog Number: 10U42
• Model/Part Number: 610588-04

Technical Specifications

• Horsepower: 1 HP
• Diameter: 5.63 inches
• Hertz: 50/60 Hz
• Motor Type: ECM
• Number of Speeds: Variable
• Frame Size: 48
• Motor Mounting Position: Horizontal
• Motor Mounting Type: Belly Band
• Motor Voltage: 120/240 VAC 1 Ph 50/60 Hz
• Shaft Size: 1/2 x 8.25 inches
• Rotation: Reversible
• CW/CCW: CW/CCW
• Manufacturer Warranty: 2 Year Replacement Warranty by United HVAC Motors
• UPC: 00810167550993
