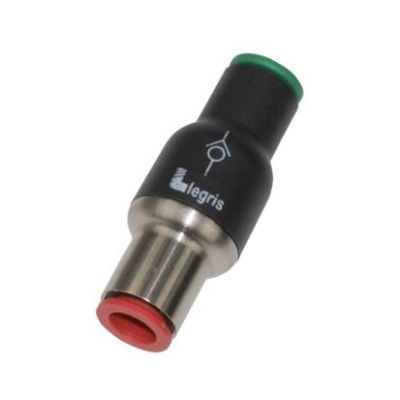

Legris 79966000 Check Valve Composite Inline with 3/8 Tube Port Size

Product Description

The Legris 79966000 is a composite inline check valve designed to manage airflow. This valve allows air to flow in one direction while preventing reverse flow. A clear directional arrow on the body indicates the correct flow direction. The valve will open under pressure exceeding seven psi, while a differential pressure below three point six psi will keep it closed.

• One-piece construction for durability.
• Push-to-connect feature for easy installation.
• Compact design for space-efficient use.

Product Highlights

This valve is suitable for various pneumatic applications, ensuring reliable performance in systems requiring controlled airflow.

Product Information

Standard Information

• Brand: Legris
• MPN: 79966000

Technical Specifications

• End Type: In-line, Tube x Tube
• Operating Pressure Range: 15 psi to 145 psi
• Pressure [Max]: 145 psi
• Tube Size: 3/8 in
• Direction of Flow: Meter-In, Meter-Out
• Material: Composite, Nickel-Plated Brass
• Temperature Range [Max]: 150 °F
• Temperature Range [Min]: 34 °F
• Seal Material: Buna-N
• Weight: 0.039 LB
• EAN or UPC: 820099564241
