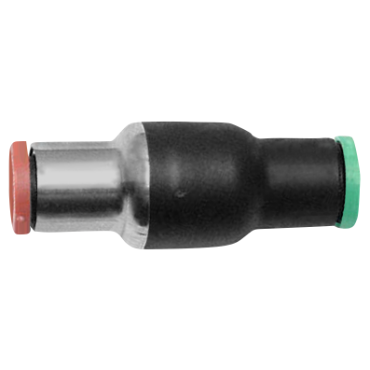

Legris 79965600 Check Valve Composite Inline 1/4 Tube Port Size

Product Description

The Legris 79965600 check valve is designed to enable airflow in one direction while preventing backflow. The body has an arrow indicating the proper flow direction. When pressure exceeds seven psi, it lifts the internal spring, allowing air to pass through. If the pressure drops below three point six psi, the valve will close, blocking airflow.

• One-piece construction design
• Push-to-connect tube integration
• Compact and lightweight profile

Product Highlights

This check valve is ideal for applications requiring reliable flow direction control. It uses a composite material for durability and lightweight handling.

Product Information

Standard Information

• Brand: Legris
• Part Number: 79965600

Technical Specifications

• Max Pressure: 145 psi
• Tube Size: 1/4 in
• Material: Composite, Nickel-Plated Brass
• Flow Direction: Meter-In, Meter-Out
• Max Temperature: 150 °F
• Overall Length: 1.610 in
• Seal Material: Buna-N
• Operating Pressure Range: 15 psi to 145 psi
