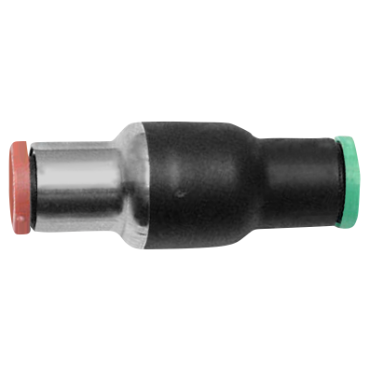

Legris 79961000 | Check Valve | 10 mm | Replacement MPN

Product Description

The Legris 79961000 check valve is designed for in-line applications. It allows air to flow in one direction while blocking it in the opposite direction. The fitting features a flow direction arrow for easy installation. When the pressure exceeds 7 psi, it overcomes the spring pressure to open the valve. If the pressure falls below 3.6 psi, it remains closed and prevents backflow.

• One-piece construction for durability
• Push-to-connect feature for simple installation
• Lightweight design for easy handling

Product Highlights

This check valve is ideal for controlling air flow in pneumatic systems and is commonly used in various industrial applications.

Product Information

Standard Information

• Category: Check Valves
• Brand: Legris

Technical Specifications

• Tube Size: 10 mm
• Material: Composite, Nickel-Plated Brass
• Valve Type: Non-Return
• Pressure Max: 145 psi
• Temperature Range Max: 150 °F
• Temperature Range Min: 34 °F
• Operating Pressure Range: 15 psi to 145 psi
• Seal Material: Buna-N
• Fitting Angle: Straight
• Weight: 0.039 LB
• Length: 63.500 mm
• Direction of Flow: Meter-In, Meter-Out
• EAN or UPC: 820099340579
