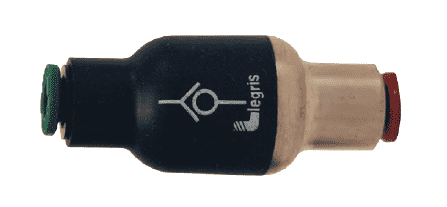

Legris 79960800 Check Valve 5/16 in

Product Description

The Legris 79960800 check valve allows air flow in one direction while preventing backflow. It features a clear flow direction indicator on its body. When pressure exceeds 7 psi, the internal spring releases, permitting air movement. A pressure under 3.6 psi keeps the valve sealed.

• One-piece construction for durability
• Push-to-connect feature for simple installation
• Compact and lightweight design

Product Highlights

This check valve is suitable for various pneumatic applications to ensure correct air direction and pressure management.

Product Information

Standard Information

• Brand: Legris
• MPN: 79960800

Technical Specifications

• Material: Composite, Nickel-Plated Brass
• Seal Material: Buna-N
• Tube Size: 5/16 inches, 8 mm
• Pressure [Max]: 145 psi
• Temperature Range [Min]: 34 °F
• Temperature Range [Max]: 150 °F
• Overall Length: 2.030 inches
• End Type: In-line, Tube x Tube
• Operating Pressure Range: 15 psi to 145 psi
• Direction of Flow: Meter-In, Meter-Out
• Weight: 0.039 lb
• EAN or UPC: 820099340456
