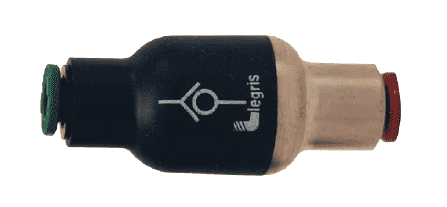

Legris 79960600 Check Valve Air Flow Control 6 mm Tube Size

Product Description

The Legris check valve with MPN 79960600 is designed for air flow control. This in-line valve allows air to travel in one direction while preventing reverse flow. An arrow on the body indicates proper flow direction. It opens under a pressure above seven psi and blocks flow below three point six psi.

• In-line tube connection
• Lightweight and compact design
• One-piece construction

Product Highlights

The Legris check valve is suitable for various applications where directional air flow is critical.

Product Information

Standard Information

• Brand: Legris
• MPN: 79960600

Technical Specifications

• Fitting Angle: Straight
• Inch/Metric: Metric
• End Type: In-line, Tube x Tube
• Overall Length: 41 mm
• Tube Size: 6 mm
• Operating Pressure Range: 15 psi to 145 psi
• Direction of Flow: Meter-In, Meter-Out
• Temperature Range [Min]: 34 °F
• Seal Material: Buna-N
• Temperature Range [Max]: 150 °F
• Valve Type: Non-Return
• Pressure [Max]: 145 psi
• Material: Composite, Nickel-Plated Brass
• Weight: 0.028 LB
• EAN or UPC: 820099340333
