Legris 79960400 Check Valve Composite Inline 5/32 in / 4 mm Tube Port Size

Product Description

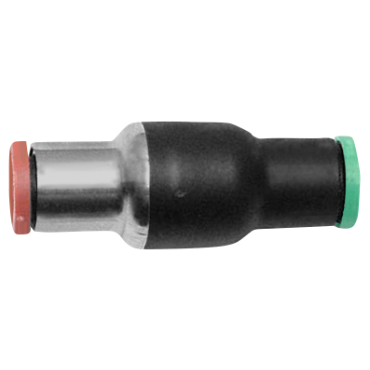

The Legris check valve model 79960400 enables air flow in one direction while blocking reverse flow. The product features an arrow on the body to show the correct flow direction. When the air pressure exceeds seven psi, it opens the valve against spring tension. If the pressure falls below 3.6 psi, the valve closes to prevent any backflow.

• Composite Inline Check Valve
• Tube Port Size of five thirty-seconds of an inch or four millimeters
• Lightweight and compact design

Product Highlights

This check valve is ideal for air systems requiring reliable direction control and pressure management. Its push-to-connect tube design allows for easy installation.

Product Information

Standard Information

• Brand: Legris
• MPN: 79960400

Technical Specifications

• Pressure [Max]: 145 psi
• Material: Composite, Nickel-Plated Brass
• Seal Material: Buna-N
• Operating Pressure Range: 15 psi to 145 psi
• Tube Size: 5/32 in, 4 mm
• Temperature Range [Min]: 34 °F
• Direction of Flow: Meter-In, Meter-Out
• Temperature Range [Max]: 150 °F
• Overall Length: 1.520 in
• End Type: In-line, Tube x Tube
• Weight: 0.017 lb
• EAN or UPC: 820099340234
