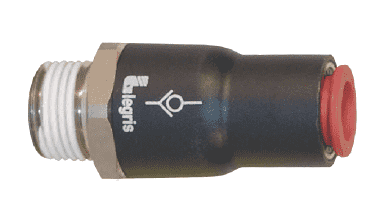

Legris 79956018 Check Valve Meter-Out 3/8 in Tube Size

Product Description

The Legris 79956018 is an inline check valve designed for efficient air flow management. This valve allows air to flow in one direction while preventing backflow. It is marked with an arrow indicating the correct flow direction. When the pressure exceeds seven psi, the valve opens, allowing air passage. If the pressure is less than 3.6 psi, the valve remains closed.

• One-piece construction design
• Push-to-connect tube connection
• Compact, lightweight design

Product Highlights

Ideal for air systems, the Legris check valve is built for easy installation and reliable service.

Product Information

Standard Information

• Brand: Legris
• MPN: 79956018

Technical Specifications

• Temperature Range [Max]: 158 °F
• Pressure [Max]: 145 psi
• Tube Size: 3/8 in
• Seal Material: Buna-N
• Material: Composite, Nickel-Plated Brass
• Flow Direction: Meter-Out
• Operating Pressure Range: 15 psi to 145 psi
• Male Thread Size: 3/8
