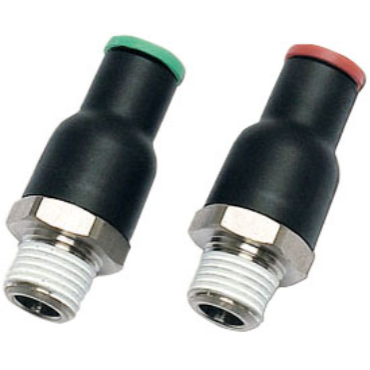

Legris 79955614 Check Valve 1/4 in Tube Size 1/4 in NPT Male Thread

Product Description

The Legris 79955614 check valve is designed to allow air to flow in one direction while preventing backflow. This valve features a clear direction of flow indicated on its body. It operates effectively when pressure exceeds seven psi, overcoming the spring pressure to permit air flow. If the pressure drops below three point six psi, the valve will block the passage.

• One-piece construction design
• Push-to-connect tube connection
• Compact and lightweight design

Product Highlights

This check valve is ideal for applications requiring reliable air flow control in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 79955614

Technical Specifications

• Seal Material: Buna-N
• Max Pressure: 145 psi
• Material: Composite, Nickel-Plated Brass
• End Type: Male Threaded Check Valve (Meter Out)
• Male Thread Size: 1/4
• Tube Size: 1/4 in
• Thread Type: NPT
• Direction of Flow: Meter-Out
• Operating Pressure Range: 15 psi to 145 psi
• Inch/Metric: Fractional
• Temperature Range: 30 °F to 160 °F
• Weight: 0.032 LB
• EAN or UPC: 820099550480
