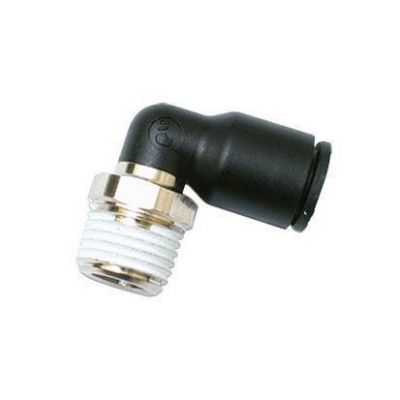

Legris 79955611 Check Valve 1/4 in Tube Size 1/8 in NPT Male Thread

Product Description

The Legris check valve with MPN 79955611 allows air to flow in one direction while preventing back flow. It features an arrow on the body that indicates flow direction. When pressure exceeds seven psi, it opens, allowing air to pass. If the pressure falls below 3.6 psi, it seals off the passage.

• One-piece construction for stability
• Push-to-connect tube feature
• Compact and lightweight design

Product Highlights

This valve is efficient for controlling air flow in various systems. Ideal for pneumatic applications, it prevents back flow and ensures system reliability.

Product Information

Standard Information

• Brand: Legris
• MPN: 79955611

Technical Specifications

• Pressure [Max]: 145 psi
• Male Thread Size: 1/8
• End Type: Male Threaded Check Valve (Meter Out)
• Seal Material: Buna-N
• Temperature Range [Min]: 30 °F to 160 °F
• Inch/Metric: Fractional
• Tube Size: 1/4 in
• Thread Type: NPT
• Direction of Flow: Meter-Out
• Operating Pressure Range: 15 psi to 145 psi
• Material: Composite, Nickel-Plated Brass
• Weight: 0.031 LB
• EAN or UPC: 820099550466
