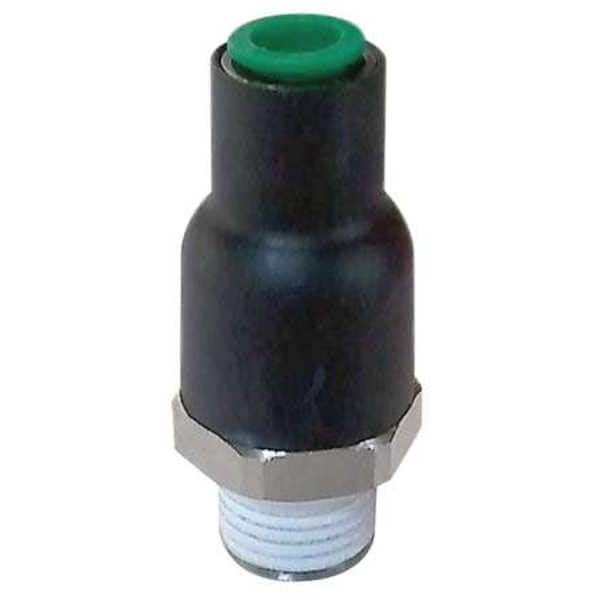

Legris 7985 56 14 Tube to Male Thread Pneumatic Check Valve

Product Description

The Legris 79855614 Tube to Male Thread Pneumatic Check Valve is designed for efficient air flow control. This compact valve is ideal for mounting directly to cylinders. The intake air flows freely while the exhaust air is regulated via a specialized adjustment screw. This helps control the speed of the cylinder by managing exhaust air.

• One-piece construction design
• Compact, right-angle installation
• Integral LF3000 fitting connection

Product Highlights

This check valve is a reliable choice for pneumatic systems requiring precise flow management.

Product Information

Standard Information

• Brand: Legris
• MPN: 79855614

Technical Specifications

• Pressure [Max]: 145 psi
• Operating Pressure Range: 15 psi to 145 psi
• Male Thread Size: 1/4
• Thread Type: NPT
• End Type: Tube to Male Thread
• Material: Composite
• Tube Size: 0.25 in
• Direction of Flow: Meter-In
• Seal Material: Buna-N
• Weight: 0.031 LB
• EAN or UPC: 820099550442
