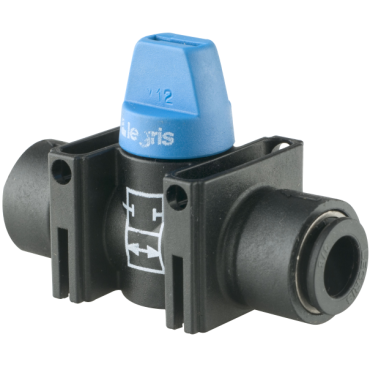

Legris 79105600 2/2 Non-Venting Push-to-Connect Mini Ball Valve

Product Description

The Legris 79105600 is a two-way composite mini ball valve designed for tube to tube connections. This product is suitable for compressed air systems and features a compact design, making it ideal for tight spaces.

• Compact design for space-saving installation.
• Temperature range from -4 degrees F to 175 degrees F.
• Maximum pressure tolerance of 145 psi.

Product Highlights

This valve is lightweight and easy to install, with a slotted head for easy adjustments. Its composite body provides durability and resistance to various fluids.

Product Information

Standard Information

• Brand: Legris
• MPN: 79105600

Technical Specifications

• Vacuum Hg: 28 in
• Tube OD: 1/4 in
• Suitable Fluid: Compressed Air
• Pressure [Max]: 145 psi
• Temperature Range [Max]: 175 degrees F
• Temperature Range [Min]: -4 degrees F
• Body Material: Composite
• Connection Type: Tube to Tube
