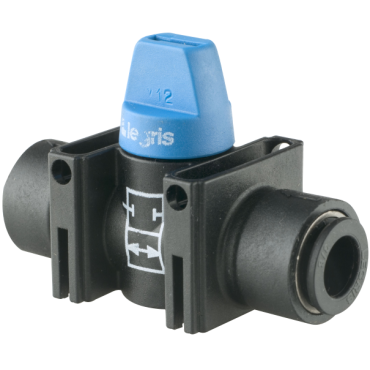

Legris 79101000 2/2 Non-Venting Push-to-Connect Mini Ball Valve

Product Description

The Legris 79101000 is a 2/2 non-venting push-to-connect mini ball valve designed for efficient fluid control. This mini ball valve connects tubes with a diameter of ten millimeters and operates under various conditions. It is suitable for use with compressed air, making it ideal for pneumatic systems.

• Compact design for tight spaces
• Lightweight for easy installation
• Slotted head allows for adjustment

Product Highlights

This mini ball valve combines durability with flexibility, ensuring reliable performance even in challenging environments.

Product Information

Standard Information

• Brand: Legris
• Part Number: 79101000

Technical Specifications

• Type: Mini Ball Valve
• Valve Type: Valve
• Connection Type: Tube to Tube
• Body Material: Composite
• Weight: 0.246 LB
• Tube OD: 10 mm
• Vacuum Hg: 28 in
• Pressure [Max]: 145 psi
• Suitable Fluid: Compressed Air
• Temperature Range [Min]: -4 °F
• Temperature Range [Max]: 175 °F
• EAN or UPC: 820099337418
