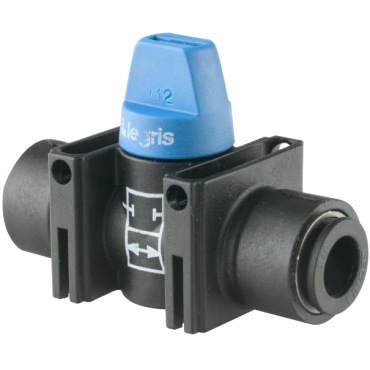

Legris 79100600 2/2 Non-Venting Push-to-Connect Mini Ball Valve

Product Description

The Legris 79100600 is a 2/2 non-venting push-to-connect mini ball valve designed for seamless tube-to-tube connections in various fluid systems. This valve is compact and lightweight, making it suitable for applications where space and weight are crucial. It features a slotted head that allows for easy adjustment. This valve is commonly used in systems that handle compressed air.

• 2-way composite mini ball valve
• 6 mm tube to tube connection
• Max pressure of 145 psi

Product Highlights

This mini ball valve is ideal for HVAC, pneumatic systems, or industrial applications requiring reliable flow control.

Product Information

Standard Information

• Type: Mini Ball Valve
• Connection Type: Tube to Tube

Technical Specifications

• Temperature Range [Max]: 175 °F
• Temperature Range [Min]: -4 °F
• Suitable Fluid: Compressed Air
• Body Material: Composite
• Pressure [Max]: 145 psi
• Vacuum Hg: 28 in
• Tube OD: 6 mm
• Weight: 0.088 LB
• EAN or UPC: 820099337357
