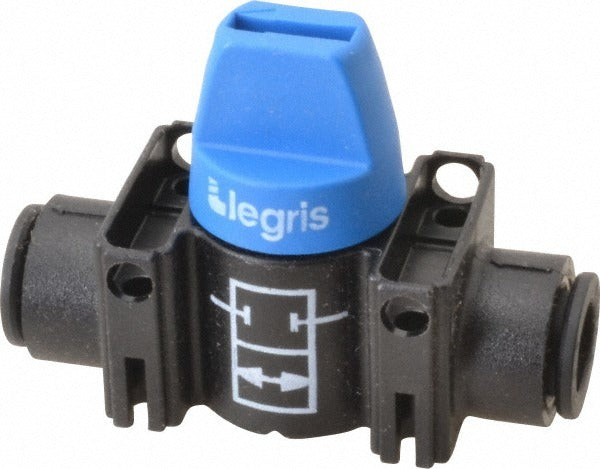

Legris 7910 08 00 Miniature Ball Valve 8mm Push-to-connect

Product Description

The LEGRIS 7910 08 00 is a miniature manual ball valve designed for compressed air and pneumatic fluid control in tight-space installations. It features a standard-port configuration with push-to-connect fittings on both ends, allowing fast, tool-free tube connections at an 8 mm pipe size. The composite body keeps weight low at 0.1212 pounds, while nickel-plated brass trim and Buna-N seals deliver reliable shutoff up to 145.03 psi. The short handle in black with a blue accent provides a positive quarter-turn actuation grip even in confined panel or manifold layouts. Licensed plumbing and pneumatic technicians install this valve in line assemblies where a compact inline shutoff is required.

This valve is suited for residential and light commercial pneumatic systems, instrumentation lines, and fluid-control assemblies where 8 mm push-to-connect tubing is used. Its compact form factor makes it a practical choice for machine builders, OEM panel integrators, and service technicians working in space-constrained enclosures or tubing manifolds. The push-to-connect end connections on both ports simplify installation and speed up service when tube replacement is needed without disassembling surrounding components.

Key Features

• Standard-port miniature ball valve with quarter-turn manual operation via short handle
• Push-to-connect x push-to-connect end connections for tool-free 8 mm tube installation
• Maximum working pressure of 145.03 psi for typical pneumatic service
• Composite body construction reduces overall assembly weight
• Nickel-plated brass trim with Buna-N seat and seal materials for durability in air and compatible fluid service
• Compliant with California PROP 65, REACH, and RoHS standards

Compatibility

Designed as an OEM-style inline shutoff valve for pneumatic and compressed-air systems using 8 mm push-to-connect tubing. No specific equipment model compatibility was stated in the available product data.

Installation Notes

Depressurize and lock out the pneumatic or fluid system completely before installing or servicing this valve. Ensure the 8 mm tubing is cut squarely and fully seated into each push-to-connect port before pressurizing. Verify system pressure does not exceed the 145.03 psi maximum working pressure rating. Installation should follow applicable pneumatic system codes and the equipment manufacturer guidelines for inline valve placement.
