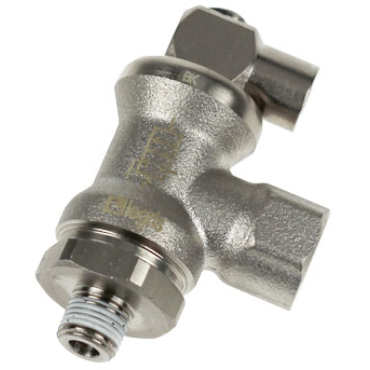

Legris 78861414 Threaded Port Lockout Valve

Product Description

The Legris threaded port lockout valve with MPN 78861414 is designed for use in pneumatic systems. This valve ensures safety by locking the cylinder's piston when it is mounted in pairs. It prevents accidental release of air by cutting off the supply and exhaust simultaneously. This product is suitable for a variety of applications, such as maintenance and operational safety in automation systems.

• Male Thread to Female Thread connection
• Operating Pressure Range from fourteen point five psi to one hundred forty-five psi
• Temperature Range from minus four degrees Fahrenheit to one hundred sixty degrees Fahrenheit

Product Highlights

This lockout valve features a two-way design and operates normally-closed. It provides a reliable emergency shut off and is fully orientable to accommodate various installation needs.

Product Information

Standard Information

• Brand: Legris
• Part Number: 78861414

Technical Specifications

• Port Size: 1/4
• Overall Length: 1.59 inches
• Overall Height: 2.09 inches
• Orifice Size: 0.16 inches
• Pilot Port Size: #10-32 UNF/M5
• Male Thread Type: NPT
• Weight: 0.286 LB
• EAN or UPC: 820099337159
