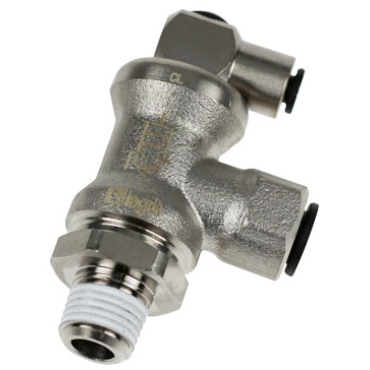

Legris 78856018 Threaded Port Lockout Valve

Product Description

The Legris 78856018 is a threaded port lockout valve. This valve is used to secure pneumatic cylinders by shutting off both supply and exhaust simultaneously. It installs directly on the cylinder ports for improved safety and performance.

• Two-way, normally-closed, pilot-operated valve.
• Emergency stop valve system.
• Compact design for efficient space management.

Product Highlights

This product serves crucial safety roles in various applications, ensuring safe operation of pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 78856018

Technical Specifications

• Tube OD: 3/8 inches
• Connection Type: Male Thread to Tube
• Orifice Size: 0.24 inches
• Pilot Port Size: 5/32 inches or 4 mm Tube
• Operating Pressure Range: 15 psi to 145 psi
• Temperature Range (Max): 160 °F
• Outside Diameter: 0.375 inches
• Male Thread Type: NPT
• Male Thread Size: 3/8 inches
• Temperature Range (Min): -4 °F
• Overall Height: 2.09 inches
• Overall Length: 1.97 inches
• Port Size: 3/8 inches
• Weight: 0.474 LB
• EAN or UPC: 820099336992
