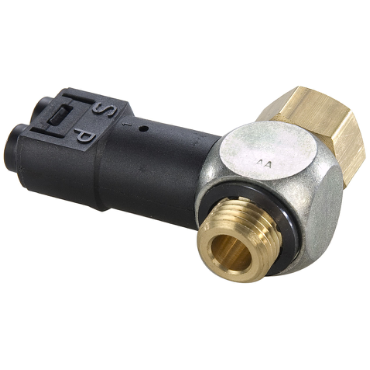

Legris 78080411 Pneumatic Threshold Sensor

Product Description

The Legris pneumatic threshold sensor, MPN 78080411, is designed to detect pressure absence and convert it into a high-pressure pneumatic output. It is suitable for monitoring pneumatic cylinder pistons. When a cylinder reaches the end of its stroke, the sensor provides a signal to control valves.

• Compact design
• Mountable on control valves or cylinders
• Operates within a pressure range of 43 to 116 psi

Product Highlights

This sensor provides reliable monitoring of pneumatic systems, ensuring efficient operation.

Product Information

Standard Information

• Brand: Legris
• MPN: 78080411

Technical Specifications

• Thread Size: 1/8
• Thread Type: NPT
• Flow Line Size: 0.62 inches
• Port Type: Tube
• Signal Type: Pneumatic
• Type: Threshold Sensor – 5/32 inches pilot, signal ports
• Overall Length: 1.74 inches
• Overall Height: 0.9 inches
• Operating Pressure Range: 43 psi to 116 psi
• Breaking Pressure: 8.5 psi
• Pilot/Signal Port: 5/32
• Weight: 0.097 LB
• EAN or UPC: 820099333403
