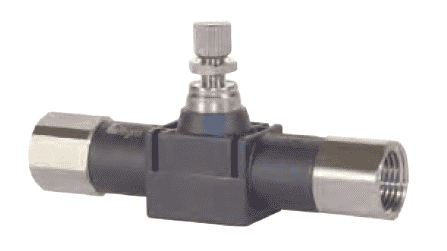

Legris 77751111 | Threaded In-Line Control Valve | 1/8 NPT Thread

Product Description

Legris 77751111 is a threaded in-line control valve designed for one-way flow. This valve allows unidirectional air flow. The intake air flows freely while exhaust air is controlled through an adjustable screw. An arrow on the valve indicates the flow direction, and the adjustment is secured with a locking nut.

• Composite material for durability
• External screw adjustment for easy control
• Includes two joining clips for installation

Product Highlights

This valve is ideal for applications where controlled airflow is necessary.

Product Information

Standard Information

• Brand: Legris
• MPN: 77751111

Technical Specifications

• Configuration: In-Line
• Female Port Type: NPT
• Temperature Range (Min): 32 °F
• Temperature Range (Max): 158 °F
• Material: Composite
• Inch/Metric: Inch
• Pressure (Min): 15 psi
• Female Port Size: 1/8
• Adjustment Type: External Knob/Screw
• Pressure (Max): 145 psi
• Direction of Flow: One-Way
• Connection Type: Threaded In-Line
• Weight: 0.034 LB
• EAN or UPC: 820099518725
