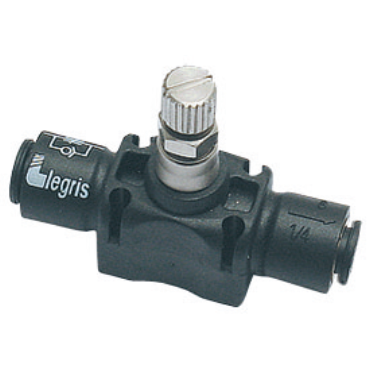

Legris 77700800 In-Line Flow Control Valve

Product Description

Legris 77700800 is an in-line flow control valve designed to manage the flow of air. This unidirectional valve allows intake air to flow freely while metering exhaust air through an adjustment screw. The designed arrow on the valve body indicates the direction of flow. The adjustment is secured with a locking nut. It includes two joining clips for easy installation.

• Composite construction
• One-way flow regulation
• External screw adjustment

Product Highlights

The valve efficiently controls airflow in various applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 77700800

Technical Specifications

• Direction of Flow: One-Way
• Adjustment Type: External Knob/Screw
• Configuration: In-Line
• Tube OD: 5/16 in, 8 mm
• Pressure [Max]: 145 psi
• Inch/Metric: Inch
• Temperature Range [Min]: 30 °F
• Material: Composite
• Overall Length: 2.380 in
• Connection Type: Push-To-Connect In-Line
• Temperature Range [Max]: 160 °F
• Pressure [Min]: 15 psi
• Weight: 0.103 LB
• EAN or UPC: 820099510415
