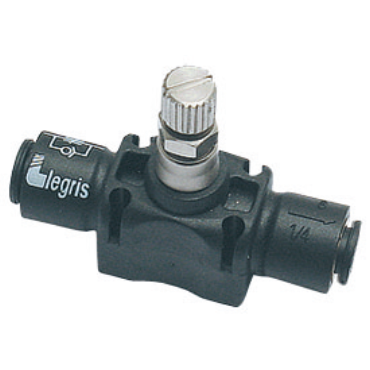

Legris 77700600 In-Line Flow Control Valve

Product Description

The Legris 77700600 is an in-line flow control valve designed for unidirectional flow control in piping systems. This valve allows free intake air flow while metering out exhaust air using a precision adjustment screw. The body features an arrow indicating the flow direction, ensuring proper installation. Adjustment is secured with a locking nut, providing reliable performance.

• Unidirectional flow control
• External screw for easy adjustment
• Includes two joining clips

Product Highlights

This product is ideal for applications requiring precise flow control in hydraulic and pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 77700600

Technical Specifications

• Tube OD: 6 mm
• Adjustment Type: External Knob/Screw
• Pressure (Max): 145 psi
• Pressure (Min): 15 psi
• Material: Composite
• Temperature Range (Min): 30 °F
• Temperature Range (Max): 160 °F
• Overall Length: 2.130 in
• Connection Type: Push-To-Connect In-Line
• Direction of Flow: One-Way
• Weight: 0.066 LB
• EAN or UPC: 820099494241
