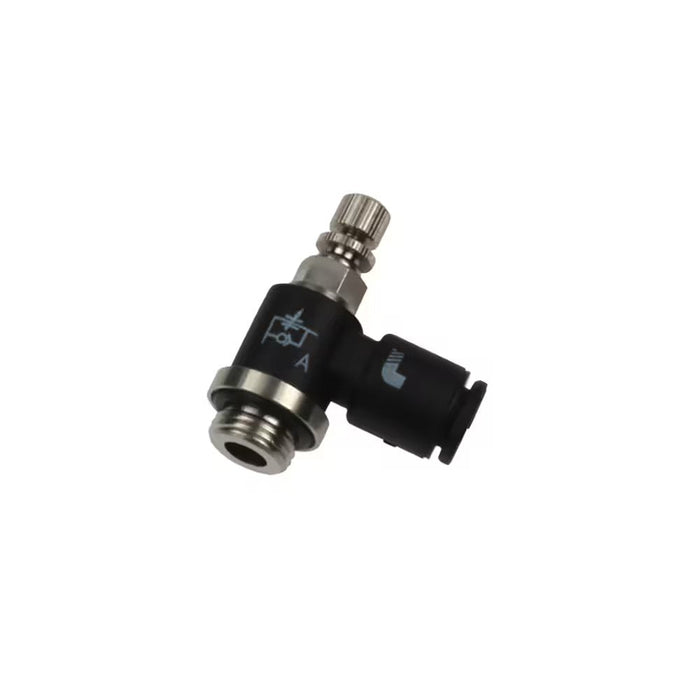

Legris 76695620 Meter-In Flow Control Regulator - Miniature

Product Description

Legris offers the 76695620 Meter-In Flow Control Regulator for use in various applications. This miniature flow regulator is designed to meter the flow of air in pneumatic systems. It features an external screw adjustment, allowing for easy control of airflow rates. The device is engineered for mounting on single-acting cylinders or valves, providing reliable flow control for various industrial needs.

• Unidirectional flow control.
• Working pressure of 160 psi.
• Temperature range from minus forty degrees Fahrenheit to one hundred thirty-five degrees Fahrenheit.

Product Highlights

This flow control regulator is essential for maintaining consistent air pressure and flow in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 76695620

Technical Specifications

• Pressure [Max]: 145 psi
• Male Thread Type: UNF
• Tube OD: 1/4 in
• Configuration: 90 degrees
• Temperature Range [Max]: 160 degrees Fahrenheit
• Connection Type: Male Thread to Tube
• Male Thread Size: #10
• Temperature Range [Min]: 30 degrees Fahrenheit
• Material: Composite
• Direction of Flow: Meter-In
• Adjustment Type: External Screw
• Weight: 0.015 LB
• EAN or UPC: 820099330037
