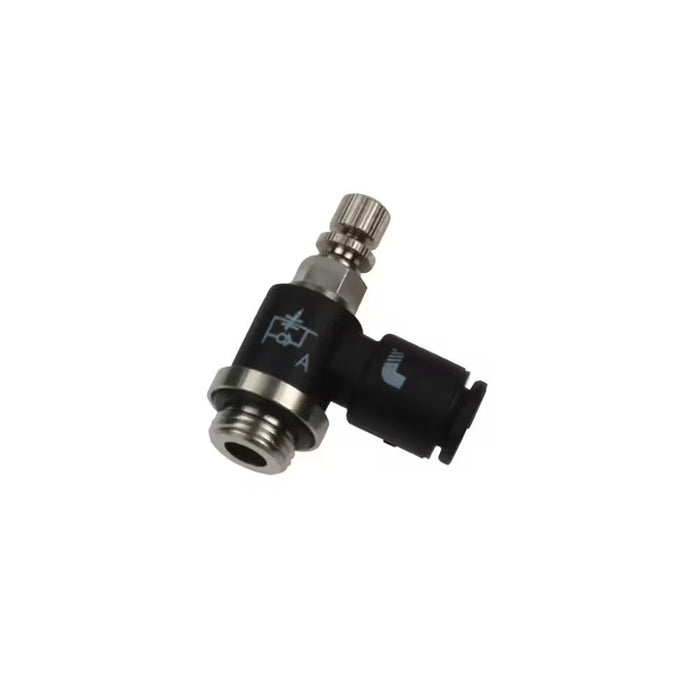

Legris 76690420 Meter-In Flow Control Regulator - Miniature

Product Description

Legris 76690420 is a meter-in flow control regulator designed for miniature applications. This flow control valve is used to regulate unidirectional air flow in pneumatic systems. It connects directly to miniature cylinders or valves, allowing for precise air control. The adjustable orifice allows the user to fine-tune the air supply, while exhaust flows freely. This regulator is suitable for various applications in HVAC and automation systems.

• Adjustable orifice for precise air control
• Working pressure up to 160 psi
• Temperature range from minus forty degrees Fahrenheit to one hundred thirty-five degrees Fahrenheit

Product Highlights

This regulator features a composite construction and a 90-degree male thread to tube connection. It includes external screw adjustment for easy flow control.

Product Information

Standard Information

• Brand: Legris
• MPN: 76690420

Technical Specifications

• Material: Composite
• Temperature Range [Min]: 30 °F
• Connection Type: Male Thread to Tube
• Adjustment Type: External Screw
• Configuration: 90 degrees
• Male Thread Size: #10
• Tube OD: 5/32 in
• Female Port Type: N/A
• Temperature Range [Max]: 160 °F
• Female Port Size: N/A
• Male Thread Type: UNF
• Direction of Flow: Meter-In
• Pressure [Max]: 145 psi
• Weight: 0.014 LB
• EAN or UPC: 820099329772
