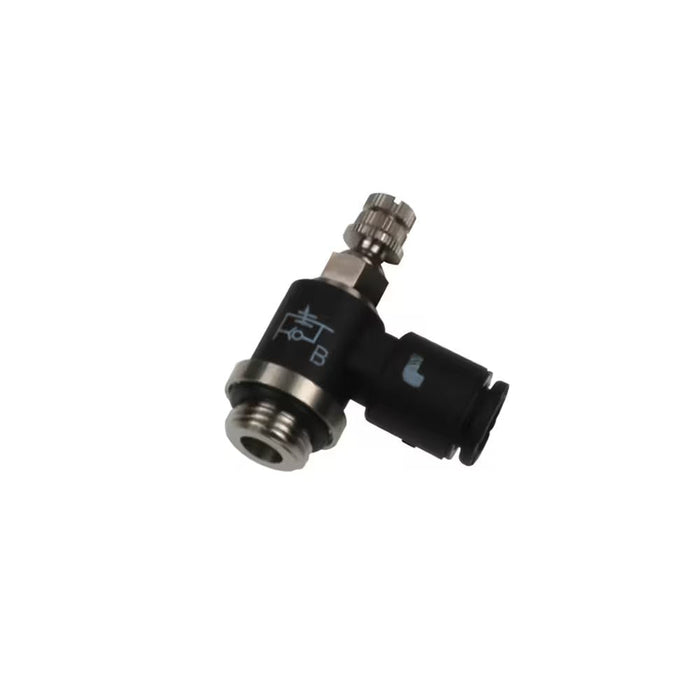

Legris 76690319 Meter-In Flow Control Regulator - Miniature

Product Description

Legris 76690319 Meter-In Flow Control Regulator is a miniature valve designed to manage air flow in pneumatic systems. This regulator ensures smooth operation by controlling inflow while allowing exhaust air to escape easily. It connects using an M5 BSPP thread and accommodates a three millimeter tube diameter. This product is suitable for applications needing precision flow control.

• Composite construction for durability
• Adjustable orifice for fine flow control
• Compatible with miniature single acting cylinders

Product Highlights

This flow regulator is ideal for use in various pneumatic setups, ensuring that your devices function optimally.

Product Information

Standard Information

• Brand: Legris
• MPN: 76690319

Technical Specifications

• Overall Height (Min): 1.004 inches
• Flow Line Size: 0.315 inches
• Tube OD: 3 mm
• Orifice Size: 0.071 inches
• Material: Composite
• Male Thread Size: M5
• Overall Height (Max): 1.122 inches
• Direction of Flow: Meter-In
• Temperature Range (Min): 30 °F
• Temperature Range (Max): 160 °F
• Pressure (Max): 145 psi
• Overall Length: 0.433 inches
• Weight: 0.017 lb
• EAN or UPC: 820099329659
