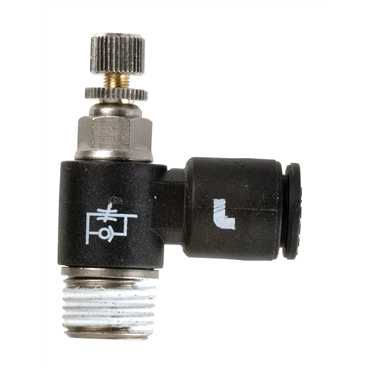

Legris 76655611 Miniature Meter-Out Flow Control

Product Description

Legris 76655611 is a miniature flow control valve designed to regulate exhaust air. It is suitable for direct mounting on cylinders. With the flow control, intake air can move freely while exhaust is adjusted using a specialized screw. This setup effectively controls the speed of the cylinder.

• One-piece construction design
• Allows for compact right-angle installations
• Recessed screw prevents unwanted adjustments

Product Highlights

Legris flow control valves display high functionality for pneumatic systems with secure adjustments for cylinder speed management.

Product Information

Standard Information

• Brand: Legris
• MPN: 76655611

Technical Specifications

• Direction of Flow: Meter-Out
• Overall Length: 3/4 in
• Tube OD: 1/4 in
• Orifice Size: 4 mm
• Cylinder Diameter: 0.45 in
• Overall Height (Min): 1.060 in
• Configuration: 90 degrees
• Male Thread Size: 1/8
• Adjustment Type: External Knob/Screw
• Max Pressure: 145 psi
• Min Pressure: 15 psi
• Min Temperature Range: 30 °F
• Max Temperature Range: 160 °F
• Material: Composite
• Weight: 0.04 LB
• EAN or UPC: 820099518824
