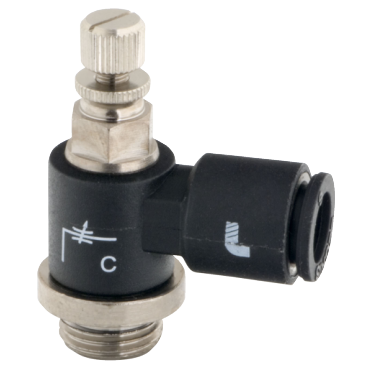

Legris 76620410 Bi-Directional Flow Control Regulator - Miniature

Product Description

The Legris 76620410 is a bi-directional flow control regulator designed for precise fluid control applications. Constructed with a composite material, this regulator features a 90-degree configuration and is suitable for use with 4 mm tube outer diameters. It is equipped with an external screw adjustment for easy flow rate management.

• Composite construction for durability
• 1/8 BSPP male thread connection
• Operates in a temperature range of 30 °F to 160 °F

Product Highlights

This flow control regulator is ideal for applications requiring reliable and adjustable flow management.

Product Information

Standard Information

• Brand: Legris
• MPN: 76620410

Technical Specifications

• Configuration: 90 degrees
• Tube OD: 4 mm
• Material: Composite
• Adjustment Type: External Screw
• Male Thread Type: BSPP
• Male Thread Size: 1/8
• Maximum Pressure: 145 psi
• Temperature Range: 30 °F to 160 °F
• Direction of Flow: Bi-Directional
• Weight: 0.026 LB
• EAN or UPC: 820099328607
