Legris 76600420 Miniature Meter-Out Flow Control

Product Description

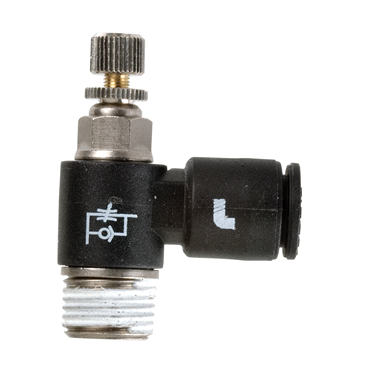

Legris 76600420 is a miniature meter-out flow control valve designed for direct mounting on cylinders. This flow control valve allows intake air to pass freely while metering exhaust air using a specialized adjustment screw. By regulating the exhaust air, users can control the speed of the cylinder effectively.

• One-piece construction for enhanced durability
• Compact design with 90-degree angle installation
• Integrated push-to-connect fitting for easy setup

Product Highlights

This valve is suitable for various applications where precise control of air flow is needed.

Product Information

Standard Information

• Connection Type: Male Thread to Tube
• Material: Composite

Technical Specifications

• Temperature Range (Max): 160 °F
• Temperature Range (Min): 30 °F
• Pressure (Max): 145 psi
• Pressure (Min): 15 psi
• Orifice Size: 2 mm
• Overall Height (Max): 1.020 in
• Overall Height (Min): 0.930 in
• Overall Length: 0.670 in
• Tube OD: 5/32 in, 4 mm
• Cylinder Dia.: 0.35 in
