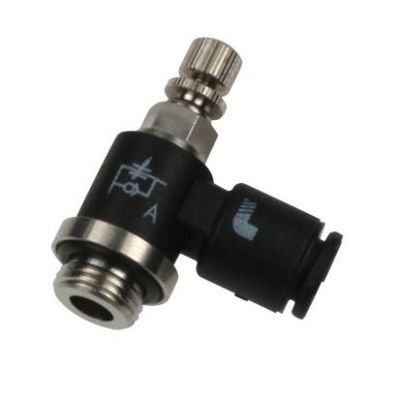

Legris 76600319 Miniature Meter-Out Flow Control

Product Description

Legris 76600319 is a miniature meter-out flow control designed for precise airflow regulation in pneumatic systems. This valve mounts directly to cylinders, allowing unrestricted intake air flow while metering exhaust air through an adjustment screw. This feature enables effective speed control of the cylinder.

• Compact right-angle installation
• Push-to-connect fitting is integral
• Recessed screw prevents unwanted adjustments

Product Highlights

This product provides reliable performance and ease of use in fluid control systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 76600319

Technical Specifications

• Adjustment Type: External Knob/Screw
• Connection Type: Male Thread to Tube
• Male Thread Size: M5
• Pressure [Max]: 145 psi
• Pressure [Min]: 14.5 psi
• Temperature Range [Max]: 158 °F
• Temperature Range [Min]: 30 °F
• Tube OD: 3 mm
