Legris 7640 04 19 Compact & Miniature Meter-Out Flow Control – Swivel Outlet

Brand: LEGRIS
SKU: 76400419
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

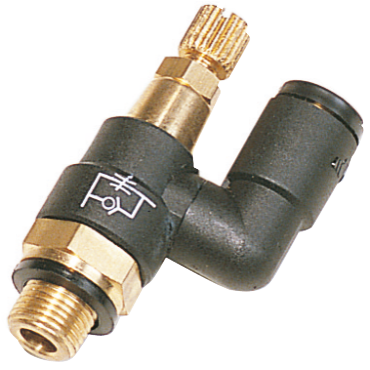

The Legris 76400419 is a compact and miniature meter-out flow control valve designed for swivel outlet applications. This design enables vertical or angled tube exits where space is limited. Air intake flows freely through the valve, while exhaust air is metered out via an adjustment screw for precise control.

  • One-piece construction enhances durability.
  • Integral push-to-connect fitting simplifies installation.
  • Rotates three hundred sixty degrees for easy assembly.

Product Highlights

Effective control of cylinder speed by regulating exhaust air. Suitable for a wide range of applications in pneumatic systems.

Product Information

Standard Information

  • Brand: Legris
  • MPN: 76400419
Technical Specifications
Male Thread Type
Metric
Adjustment Type
External Screw
Temperature Range [Min]
32 °F
Overall Length
0.64 inches
Direction of Flow
Meter-Out
Pressure [Max]
145 psi
Configuration
Swivel Outlet
Temperature Range [Max]
158 °F
Orifice Size
0.08 inches
Center to Release Button
0.27 inches
Male Thread Size
M5
Overall Height [Max]
1.21 inches
Material
Composite
Weight
0.024 pounds
