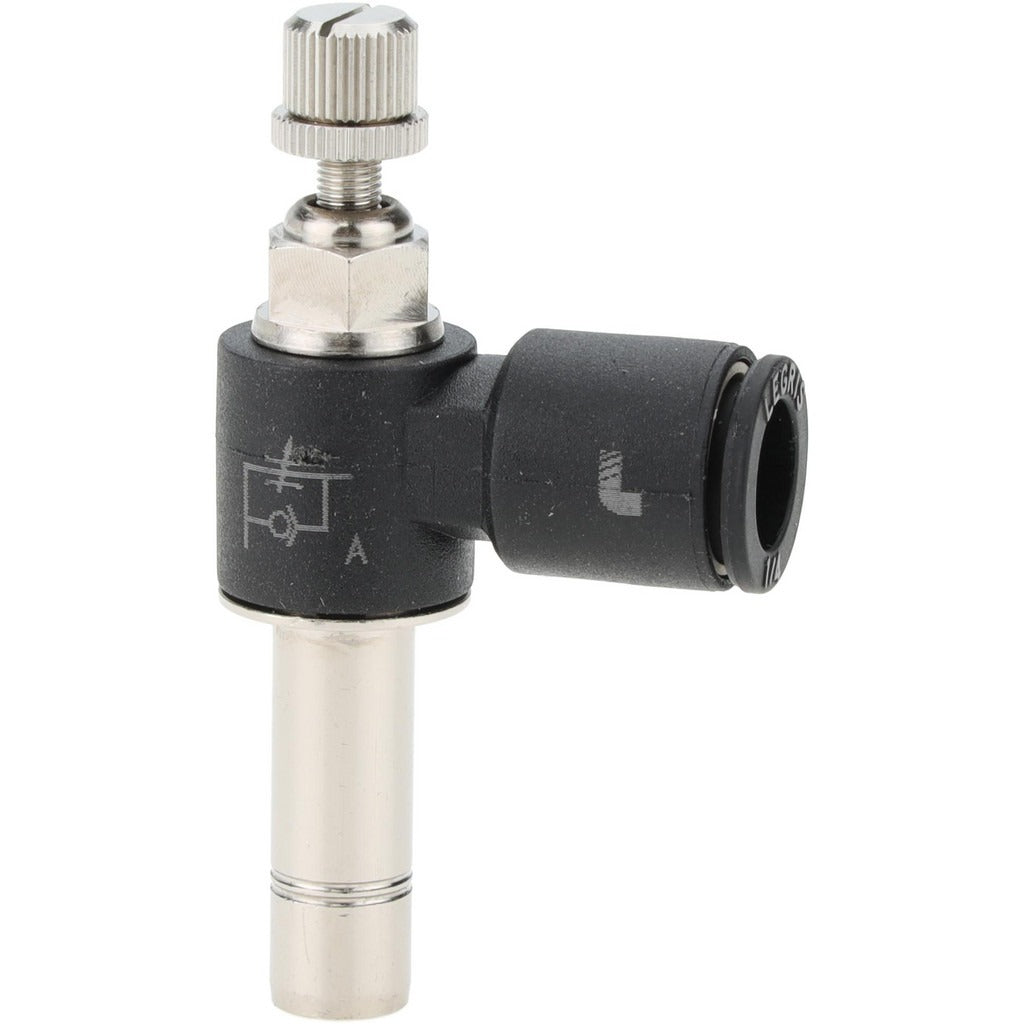

Legris 7630 56 00 Miniature Air Flow Control Valve 1/4 in

Product Description

The LEGRIS 7630 56 00 is a miniature air flow control valve designed to regulate airflow in pneumatic systems. The valve accepts a 1/4 inch tube outside diameter and is rated for a maximum working pressure of 145 psi. Body construction combines nylon and nickel-plated brass for durability in compressed air applications. This type of fitting-integrated flow control is commonly installed by pneumatic technicians and industrial maintenance professionals working on automation, HVAC controls, and fluid-power circuits.

This valve is suited for light-duty pneumatic control applications where compact size and precise flow restriction are required. Typical installations include pneumatic actuator circuits, cylinder speed control, and control panel air lines. The miniature form factor makes it appropriate for space-constrained installations in both residential HVAC control systems and commercial automation panels where a 1/4 inch push-to-connect or tube-fitting line is present.

Key Features

• Miniature flow control design for space-constrained pneumatic installations
• 1/4 inch tube outside diameter connection
• Rated to 145 psi maximum working pressure
• Nylon and nickel-plated brass body construction for corrosion resistance
• Single-piece package quantity suitable for individual replacement or service

Compatibility

Designed as an OEM-style replacement or service component for pneumatic control systems utilizing 1/4 inch OD tubing rated to 145 psi or below.

Installation Notes

Installation is typically performed by a licensed pneumatic technician or qualified industrial maintenance professional. De-pressurize and lock out the air supply line before removing or installing any flow control valve. Confirm tube OD and working pressure ratings match the circuit requirements before installation. Refer to applicable local codes and the system manufacturer guidelines for pneumatic fitting torque and sealing procedures.
