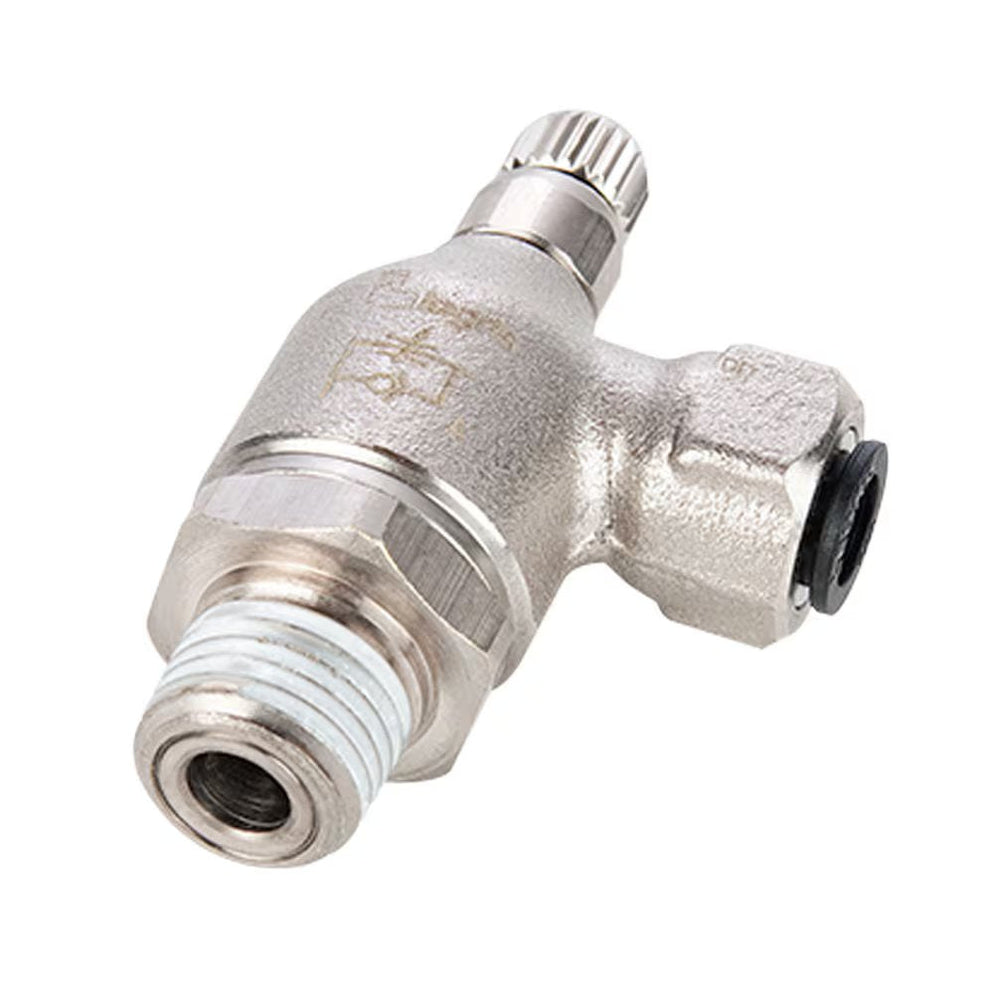

Legris 71055614 Compact Meter-Out Flow Control

Product Description

Legris offers the 71055614 Compact Meter-Out Flow Control. This flow control valve is designed for direct mounting to cylinders. It allows for unrestricted intake air flow and meters exhaust air via a special adjustment screw, controlling the speed of the cylinder effectively.

• Brass construction for durability
• Compact design for easy installation
• Adjustable exhaust flow for precise control

Product Highlights

This product is ideal for applications requiring precise air flow control in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 71055614

Technical Specifications

• Configuration: 90 degrees
• Pressure Max: 145 psi
• Pressure Min: 15 psi
• Temperature Range Max: 160 °F
• Temperature Range Min: 30 °F
• Material: Brass
• Adjustment Type: External Screw
• Direction of Flow: Meter-Out
• Tube OD: 1/4 in
• Male Thread Size: 1/4
• Male Thread Type: NPT
• Weight: 0.182 LB
• EAN or UPC: 820099323411
