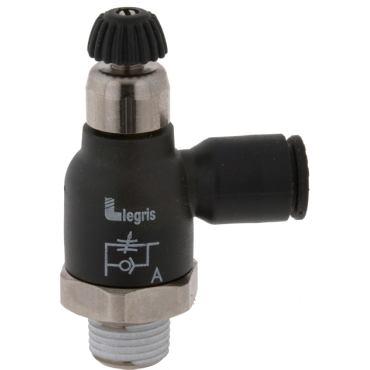

Legris 70656014 Compact Meter-Out Flow Control

Product Description

The Legris 70656014 Compact Meter-Out Flow Control is designed for easy integration with cylinders. It allows for precise regulation of exhaust air for controlled cylinder speeds. This product features a robust construction and straightforward operation.

• Direct mounting to cylinders
• Special adjustment screw for metering exhaust air
• Compact right-angle installation

Product Highlights

This flow control valve ensures efficient air flow management and durability, suitable for various applications in pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 70656014

Technical Specifications

• Temperature Range [Min]: 30 °F
• Temperature Range [Max]: 160 °F
• Cylinder Diameter: 1.01 inches
• Material: Composite
• Orifice Size: 0.31 inches
• Adjustment Type: External Knob/Screw
• Overall Length: 1.420 inches
• Pressure [Min]: 15 psi
• Overall Height [Min]: 1.870 inches
• Male Thread Size: 1/4
• Direction of Flow: Meter-Out
• Configuration: 90°
• Connection Type: Male Thread to Tube
• Tube O.D.: 3/8 inches
• Pressure [Max]: 145 psi
• Weight: 0.134 LB
• EAN or UPC: 820099321837
