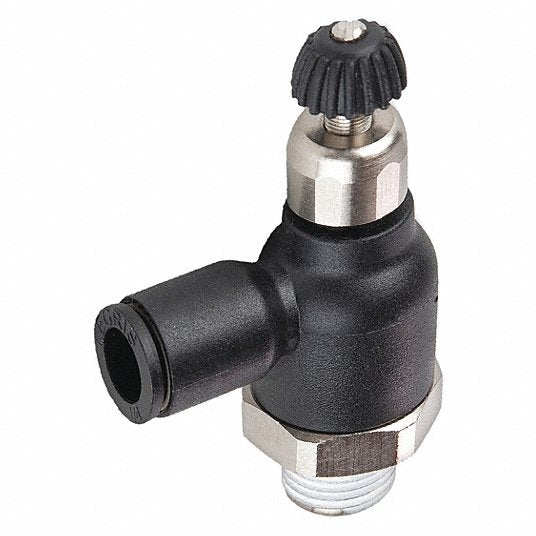

Legris 70650813 7065 08 13 | 1/4 BSPT Male Thread to Tube Flow Regulator

Product Description

Legris 70650813 is a compact flow control regulator designed for direct mounting on cylinders. It allows intake air to flow freely while exhaust air is metered out using a precisely engineered adjustment screw. This product effectively controls the speed of a cylinder by regulating exhaust air.

• Composite construction with a 90-degree male thread to tube design
• Knob adjustment and 1/4 BSPT thread
• Compatible with 8 mm tube outer diameter

Product Highlights

Ideal for controlling air flow in pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 70650813

Technical Specifications

• Direction of Flow: Meter-Out
• Pressure (Max): 145 psi
• Temperature Range (Max): 160 °F
• Adjustment Type: Knob
• Connection Type: Male Thread to Tube
• Male Thread Type: BSPT
• Material: Composite
• Pressure (Min): 15 psi
• Temperature Range (Min): 30 °F
• Configuration: 90°
• Tube OD: Five Sixteenth inches, 8 mm
• Male Thread Size: 1/4
• Weight: 0.081 LB
• EAN or UPC: 820099321486
