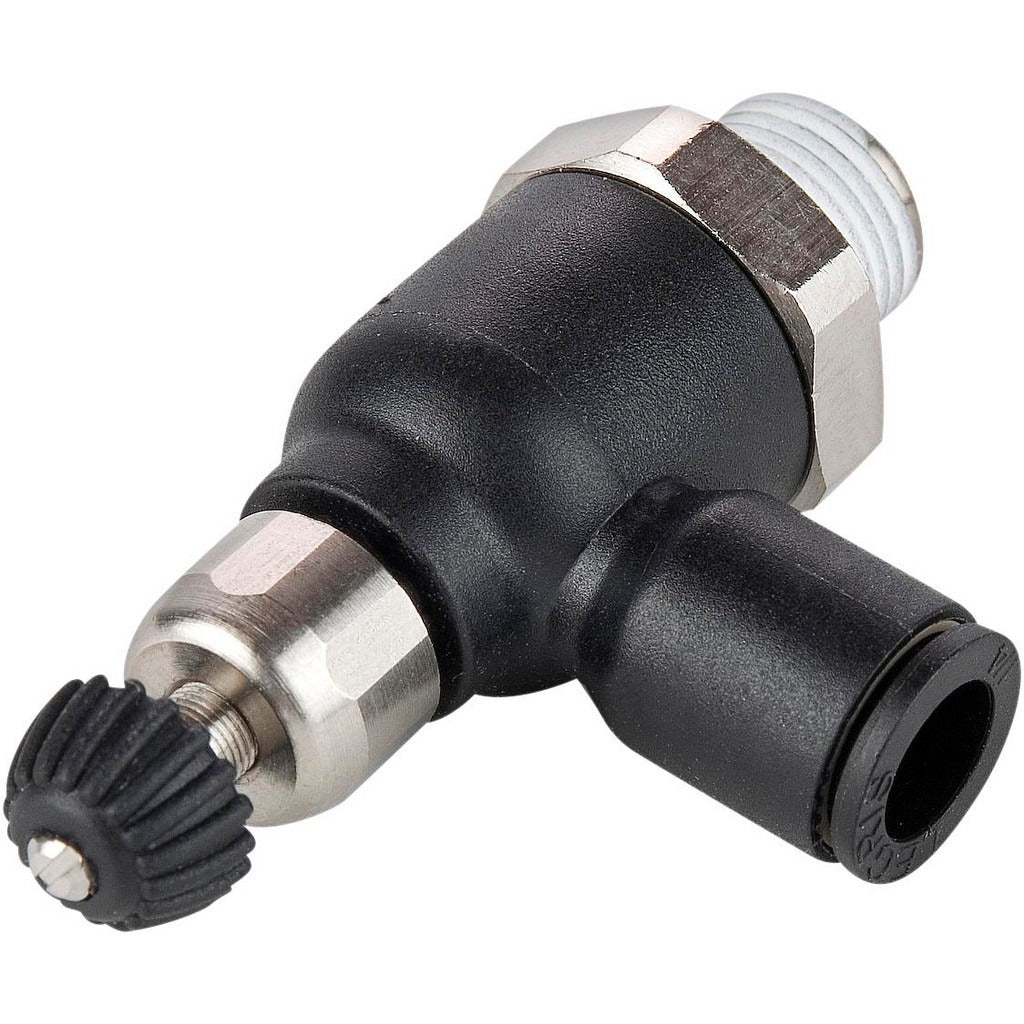

Legris 7065 10 17 Flow Control Valve 10mm Tube Bspt

Product Description

The LEGRIS 7065 10 17 is a compact meter-out flow control valve designed to regulate airflow in pneumatic systems by controlling flow on the exhaust side of the circuit. Built with a nylon body, this valve connects a 10mm outside diameter tube to a 3/8 BSPT male threaded port. Meter-out configuration means flow restriction is applied to the outgoing air, providing smooth and consistent actuator speed control. The valve carries a full vacuum rating, making it suitable for applications that require both flow control and vacuum handling in a single compact fitting. It is installed by pneumatic system technicians and industrial maintenance professionals.

This valve is used in compressed air and pneumatic control circuits where precise cylinder or actuator speed control is required. Common applications include automated assembly equipment, pneumatic cylinders, and air-powered tooling systems in industrial and light manufacturing environments. The compact form factor allows installation in tight panel or manifold spaces where standard-body flow controls would not fit. The BSPT thread type is standard in many European and Asian pneumatic systems.

Key Features

• Meter-out flow control restricts exhaust air for smooth actuator speed regulation
• 10mm tube outside diameter push-to-connect inlet for quick, tool-free tube insertion
• 3/8 BSPT male thread for direct port mounting to valves, cylinders, and manifolds
• Nylon body construction provides lightweight, corrosion-resistant performance
• Full vacuum rating supports dual use in flow control and vacuum circuit applications
• Compact body design fits space-constrained pneumatic panel installations

Compatibility

Designed as an OEM-style replacement or direct-install flow control valve for pneumatic systems using 10mm OD tubing and 3/8 BSPT male threaded ports.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician. Depressurize and lock out the pneumatic circuit completely before installing or removing the valve. Ensure the BSPT threads are wrapped with PTFE thread seal tape and tightened to hand-tight plus a firm wrench turn — do not overtighten nylon-bodied fittings. Verify tube insertion is fully seated in the push-to-connect end before restoring system pressure.
