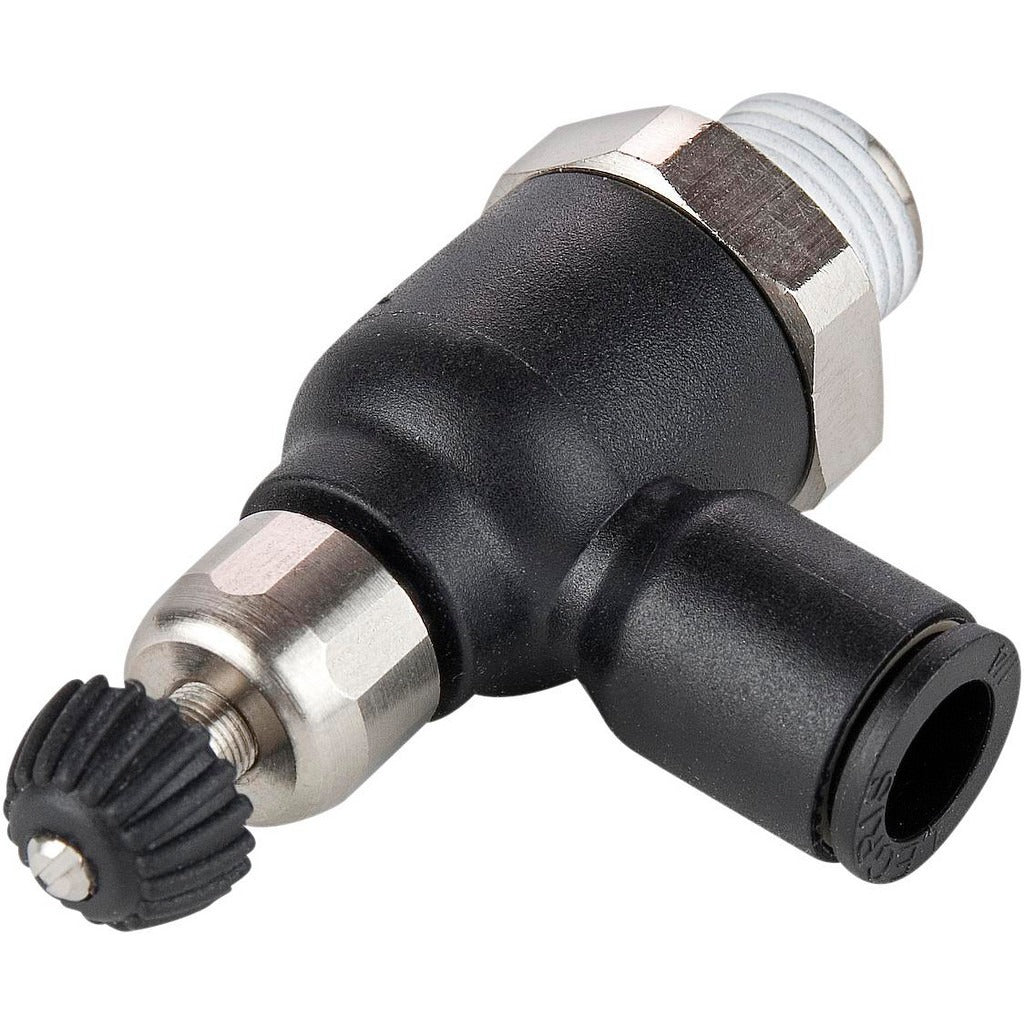

Legris 7065 08 10 Meter Out Flow Control Valve 8mm Bspt

Product Description

The LEGRIS 7065 08 10 is a compact meter out flow control valve designed to regulate airflow in pneumatic circuits by controlling flow on the exhaust side of the actuator. The valve body is constructed from nylon and accepts an 8mm outside diameter tube on one end and a 1/8 inch male BSPT threaded connection on the other. Meter out configuration means flow restriction is applied as air exits the actuator, providing smoother and more stable actuator motion under load. The valve carries a full vacuum rating, making it suitable for applications that require both flow control and vacuum handling in a single compact fitting. Licensed pneumatic technicians and industrial maintenance mechanics are the primary installers.

This valve is suited for use in compressed air systems where precise actuator speed control is needed at the cylinder port or inline on the exhaust line. Typical installations include pneumatic cylinders, slides, and rotary actuators in light industrial and automation equipment. The compact form factor fits in tight panel or manifold arrangements where standard-body flow controls would not clear. The 8mm push-to-connect tube interface and BSPT male thread make it compatible with metric pneumatic tubing and BSPT-ported actuators and valves common in European-standard equipment.

Key Features

• Meter out flow configuration for stable actuator speed control under load
• 8mm outside diameter push-to-connect tube fitting for tool-free tube insertion
• 1/8 inch male BSPT thread for direct port mounting on actuators and valves
• Nylon body construction offers corrosion resistance in ambient air service
• Full vacuum rating supports both pressure and vacuum pneumatic circuits
• Compact design fits restricted mounting spaces in automated equipment

Compatibility

Designed as an OEM-style replacement or upgrade fitting for pneumatic systems using 8mm metric tubing and 1/8 inch BSPT ported components.

Installation Notes

Installation should be performed by a qualified pneumatic technician or industrial maintenance mechanic. Depressurize and lock out the air supply before removing or installing any flow control valve. Ensure the BSPT male thread is sealed with appropriate thread sealant tape rated for compressed air service, and verify tube ends are cut cleanly and squarely before inserting into the push-to-connect fitting. Do not overtighten the threaded connection into the actuator port, as nylon body fittings can be damaged by excessive torque.
